The camshaft actuates the vertically arranged inlet and outlet valves through poppets.

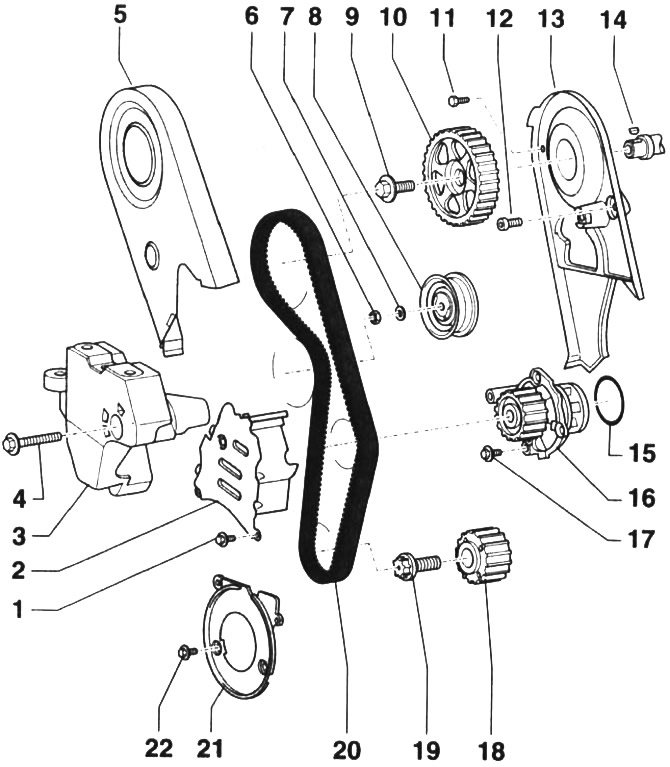

Gas distribution mechanism drive. Cars with a 1.8 liter petrol engine with a power of 74 kW (102 hp.)
1 - bolt. Tightening torque 10 Nm
2 - the middle part of the cover of the gas distribution mechanism drive
3 - engine mount bracket
4 - bolt. Tightening torque 45 Nm
5 - upper part of the cover of the gas distribution mechanism drive
6 - nut. Tightening torque 23 Nm
7 - gasket washer
8 - semi-automatic tension roller
9 - bolt. Tightening torque 10 Nm
10 - camshaft gear. The pinion is fixed in the mounting position on the shaft with a key
11 - bolt. Tightening torque 10 Nm. The bolt should be lubricated with a protective paste
12 - bolt. Tightening torque 23 Nm. The bolt should be lubricated with a protective paste
13 - rear cover of the gas distribution mechanism drive
14 - key Make sure the fit is firm
15 - O-ring. To be replaced after each disassembly
16 - water pump
17 - bolt. Tightening torque 15 Nm
18 - toothed belt gear on the crankshaft. The mating surfaces of the gear and crankshaft must be free of grease or oil residues
19 - a bolt of fastening of a gear wheel of a toothed shaft on a cranked shaft. Tightening torque 90 Nm + turn 90° (1/4 turn). The bolt must be replaced after each disassembly. Do not lubricate bolt when installing
20 - toothed belt. If the belt is to be re-installed, mark the direction of rotation with chalk or a felt-tip pen before removing it. Check the condition of the toothed belt
21 - lower cover of the timing mechanism drive
22 - bolt. Tightening torque 10 Nm. Lubricate with protective paste when installing
