Removal
1. Remove the rear seat.
2. Remove the rear seat armrests.

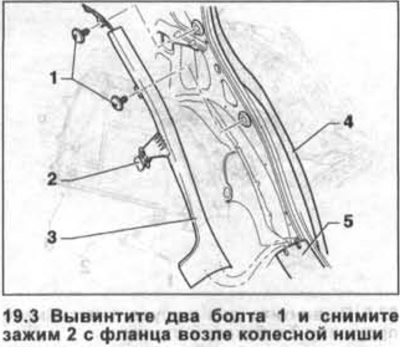

3. Unscrew the two bolts 1 and remove the clamp 2 from the flange near the wheel arch (see illustration).
(The original article is posted on the website: «vwmanual»)
4. Release trim 3 from the fastening at the junction with trim 5 of the door sill and from under the rubber seal 4 (see illustration 19.3).
5. Release trim 3 from under the upper part of the rear pillar trim by pushing it forward (see illustration 19.3).
Installation
The installation of the overlay is performed in the reverse order of removal.
