Remove the rubber boot from the lower universal joint.
Loosen the clamping bolt nut and drive out the bolt.
Remove the intermediate shaft from the lower cardan joint (pic. 387). Remove the rubber boot from the upper universal joint.

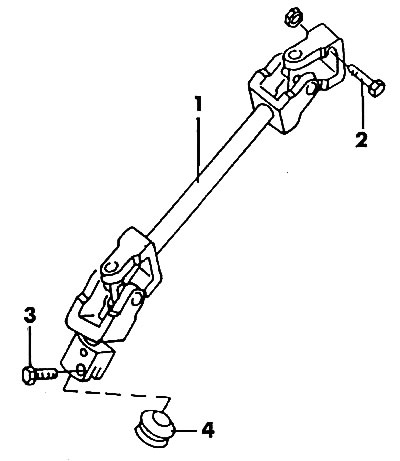

Pic. 387. Intermediate shaft: 1 - shaft; 2 - bolt; 3 - bolt; 4 - spacer sleeve
Loosen and knock out the clamping bolt. Remove the intermediate shaft from the upper cardan joint. Shaft installation is carried out in reverse order. Install the bolts and tighten to 30 Nm.
