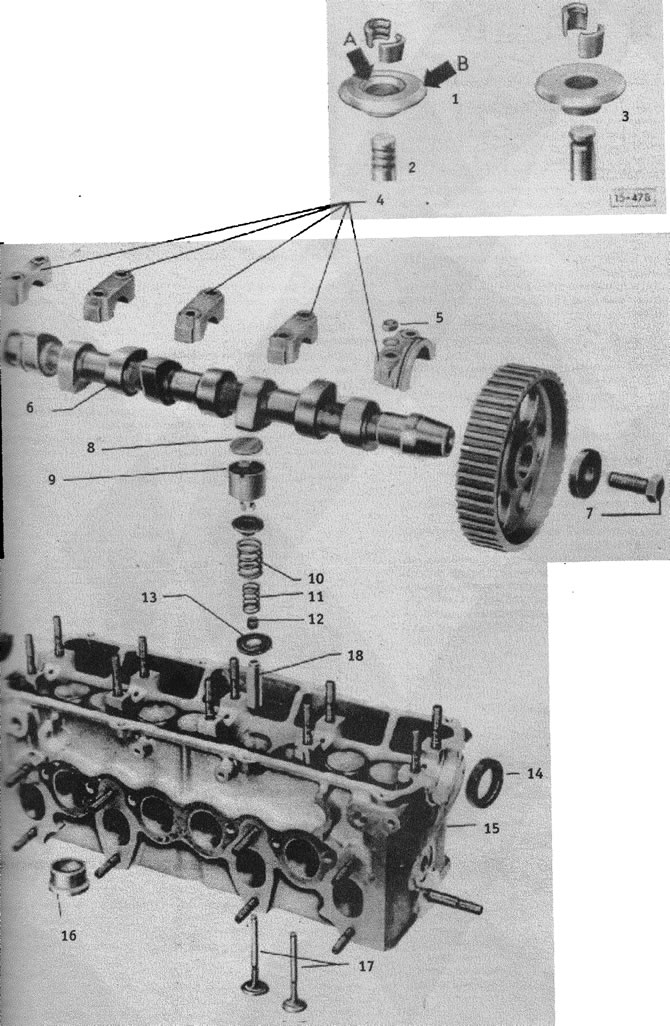

(1) new design: chamfer on the elastic disk.
(2) new design: 3 grooves.
(3) former design.
(4) bearing caps. Pay attention to the centering of the holes. Before installing the camshaft, put on the cover and check its installation.
(5) tighten the nuts with a torque wrench with a torque of 20 Nm.
(6) camshaft.
(7) tighten the bolt with a torque wrench to 45 Nm.
(8) adjusting washer for adjusting the clearance in the valves.
(9) cup pusher. Before installation, check the axial clearance of the camshaft, lubricate the working surfaces.
(10) external valve spring.
(11) internal valve spring.
(12) valve stem gasket. Replace.
(13) the lower elastic disk of the valve.
(14) pad. To remove, remove the bearing cover.
(15) cylinder head. Check for distortion.
(16) combustion chamber insert. The position is determined by the guide pin and groove.
(17) valves.
