Removal
1. Remove the decorative trim from the rear of the headliner by releasing its clips and sliding it out from under the door seal.

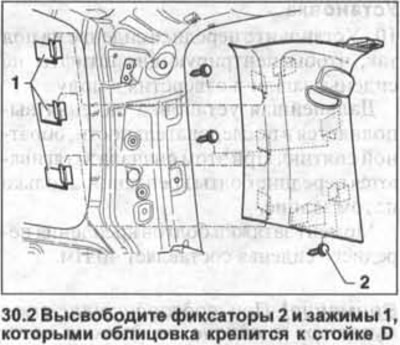

2. Release the fasteners 2 and the clamps 1 that secure the trim to the D-pillar (see illustration).
Attention! The illustration shows a seven-seater vehicle. Unlike a five-seater vehicle, the third-row passenger seat belt is removed through a hole in the trim.
3. Seven-seater vehicles: Release the seat belt webbing through the opening in the rear D-pillar trim.
Installation
4. Make sure that the trim fasteners are not damaged and are seated correctly on the trim. If necessary, replace damaged fasteners with new ones.
The pillar trim is installed in the reverse order of removal. Make sure that the trim goes under the side and rear door seals.
