Removal and installation the rear end trim (VW Polo 4)

POLO

Removal

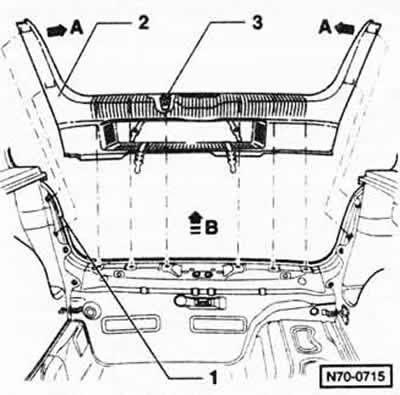

Lift and remove the luggage compartment bottom trim.



Release trim "2" from the sides of the rear door frame "arrows A".

Release the trim at the bottom from the inside of the car.

(View the original on this portal www.VWmanual.ru)

Release the trim with an upward movement "arrow B" and pull it out from under the rear door seal. 3 - spacer clamps.

Installation

Check the clamps for damage and correct positioning on the trim; replace the clamps if necessary.

Installation is carried out in the reverse order. Make sure that the rear door seal is located above the edge of the trim.
