The lock, window lift and speakers are mounted on the support beam (bracket) doors. The door lock can only be removed together with the beam.
Attention! The rear side door lock is removed in the same way as the front one.
Removal
1. Remove the door trim.
2. Remove the outside door handle.
3. Unscrew the door beam mounting bolts and remove it.
4. Turn the door bracket to the side and disconnect the plug 4 of the lock 5 (see illustration).
5. Knock out two rivets of spacer fasteners 2 from fastening angle 1 (see illustration 70.4).
6. Disconnect the door lock5 from the bracket together with the mounting bracket, prying them off with a screwdriver (see illustration 70.4).
Attention! The door lock is placed on the mounting bracket and is connected at the mounting point 3 with a rivet 6 (see illustration 70.4).

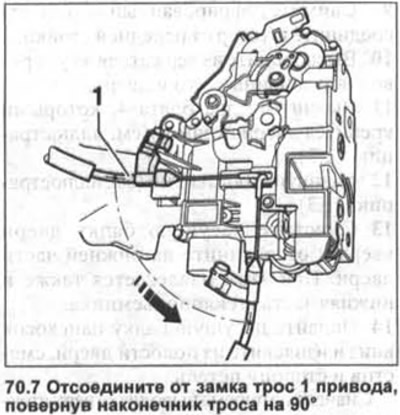

7. Disconnect the drive cable 1 from the lock by turning the cable end 90° (see illustration).
Installation
The lock is installed in the reverse order of removal.
(The original material is available on the portal: VWmanual.ru)
8. Check the operation of the door lock after assembly without closing the door.
