Removing
11. Turn off the ignition and remove the key from the lock.

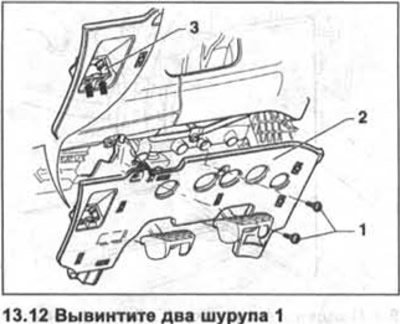

12. Remove two screws 1 (see illustration).
13. Release panel 2 from the mount and remove it by pushing down (see illustration 13.12).
14. Disconnect the footwell light plug.
15. Squeeze out two locking tabs (see arrows in illustration 13.12) and remove the diagnostic connector 3.
Installation of a facing overlay of the panel of devices is carried out in sequence, return to removal.
