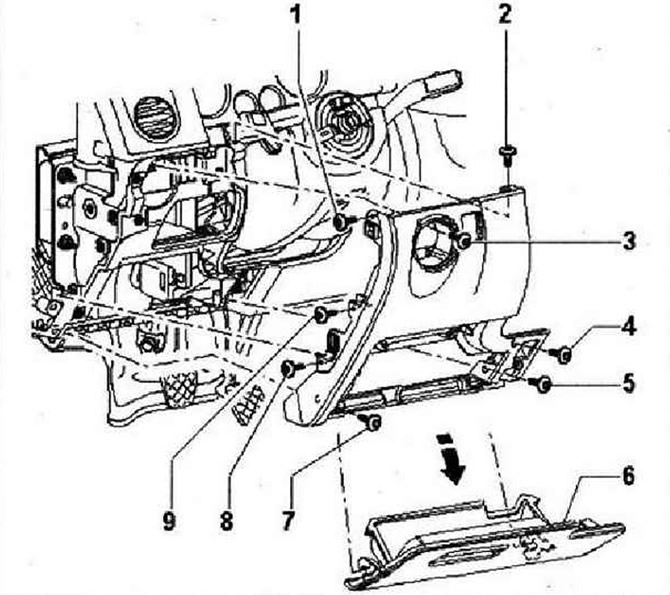

Instruction: For clarity, the steering wheel is not shown in the figure, its removal is not required.
Switch off the ignition. Remove the driver's side dash panel trim. Remove light switch -E1-. Unlock the locks and remove the steering column switch cover. It is not necessary to remove the entire steering column trim panel. Remove storage compartment -6- from mountings -arrow-. Remove screws -1-, -2-, -3-, -4-, -5-, -7-, -8- and -9- (1.5 Nm).
Instructions: When installing, tighten the screws in the order -3-, -7-, -5-, -4-, -2-, -1-, -9- and -8- (1.5 Nm).
Unlock catches and remove trim from dash panel, disconnect wiring harness from dimmer switch and dash panel insert -E20- and headlight range adjustment control -E102-.
