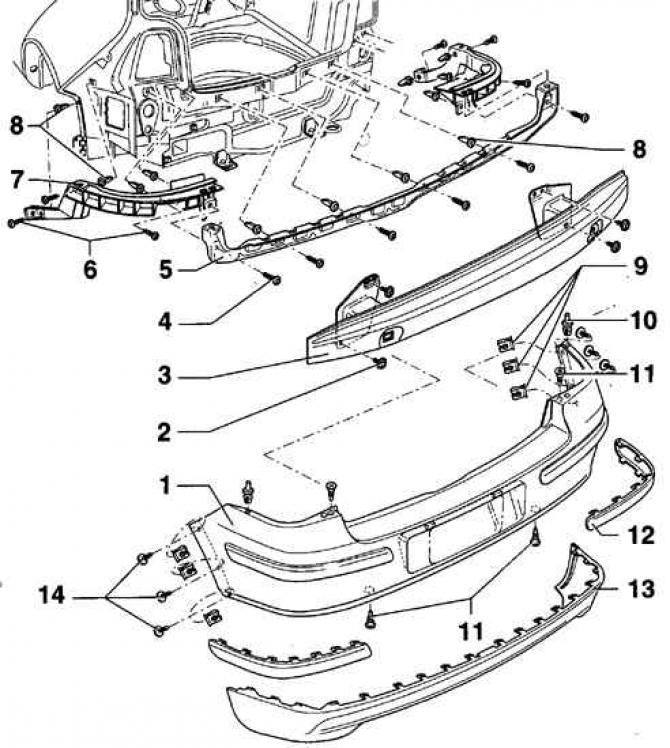

Rear bumper
- 1 - bumper;
- 2 - bolt 4 pcs., 20 Nm;
- 3 - buffer beam;
- 4 - screws 6 pcs., 1.2 Nm;
- 5 - mounting plate;
- 6 - screws 8 pcs., 1.2 Nm;
- 7 - guide;
- 8 - nuts 12 pcs.;
- 9 - bracket with nut 6 pcs.;
- 10 - spacer clamp 2 pcs.;
- 11 - bolt 4 pcs., 15 Nm;
- 12 - shock absorber pad;
- 13 - spoiler;
- 14 - screws 6 pcs., 1.2 Nm
Removal
1. Unscrew the screws securing the side parts of the bumper near the wheel arches.
2. Remove the tail lights.
3. Disconnect the electrical connector from the license plate light. The electrical connector is located under the left rear light.
4. Remove the rear bumper mounting screws (11).
5. Pull back to remove the bumper from the guide brackets.
Installation
Installation is carried out in the reverse order of removal.
