Front and rear bumper (VW Polo 3)

The front bumper is shown in Fig. 13.14, the rear bumper of the Caddy is shown in Fig. 13.15, the rear bumper of the Polo Classic is shown in Fig. 13.16, and the rear bumper of the Polo Estate is shown in Fig. 13.17.

Fig. 13.14. Front bumper:
1 - Bumper; 2 - Shock absorber; 3, 9, 10 - Screws; 4 - Nut; 5 - Rivets; 6 - Guide; 7 - Spoiler; 8 - Decorative grille.

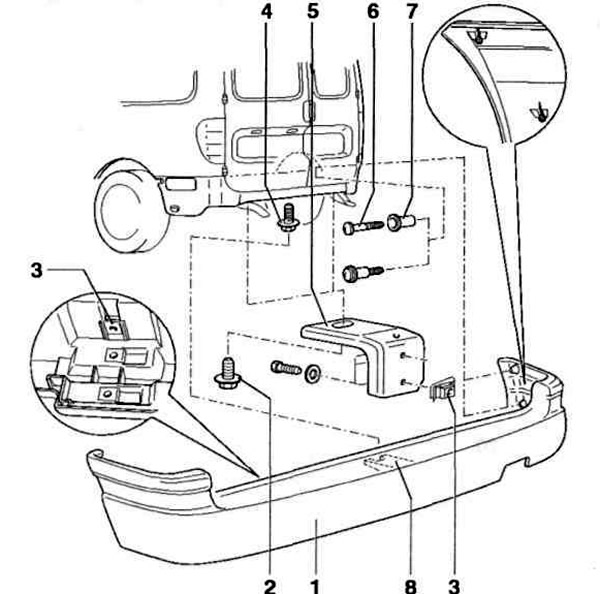

Fig. 13.15. Rear bumper of the Caddy:
1 - Bumper; 2, 4 - Bolts; 3 - Nut; 5, 8 - Brackets; 6 - Screw; 7 - Guide sleeve.

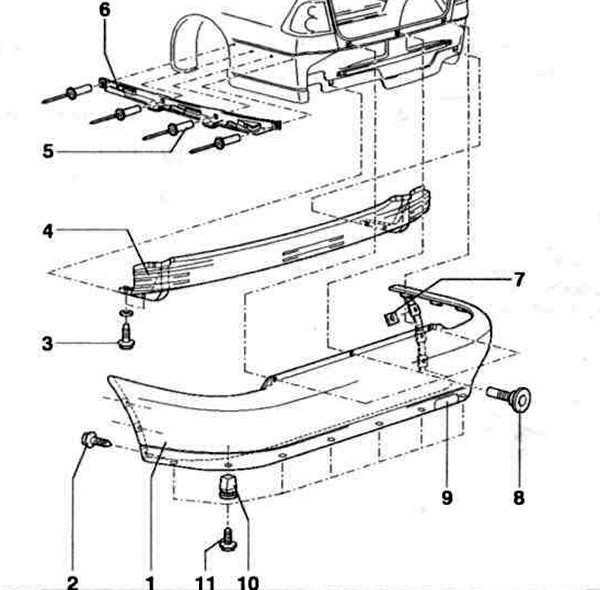

Fig. 13.16. Rear bumper of the Polo Classic:
1 - Bumper; 2, 3, 11 - Bolts; 4 - Shock absorber; 5 - Rivets; 6 - Guide; 7, 10 - Nuts; 8 - Screws; 9 - Cover/towing eye.

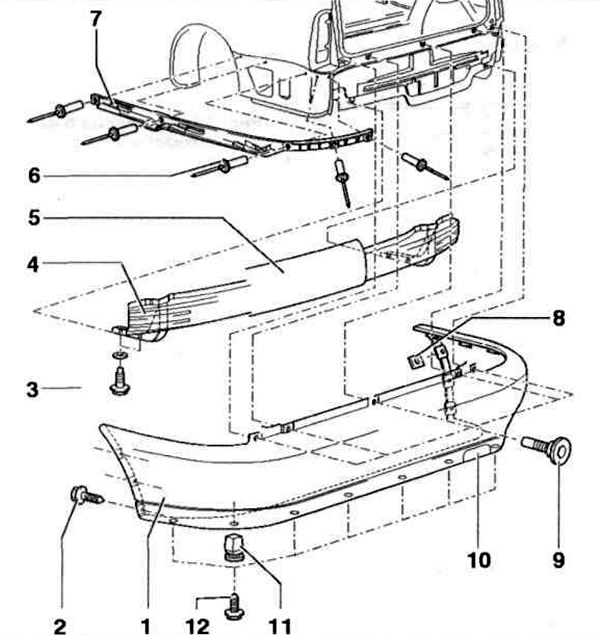

Fig. 13.17. Rear bumper of the Polo Estate:
1 - Bumper; 2, 3, 12 - Bolts; 4, 5 - Shock absorbers; 6 - Rivets; 7 - Guide; 8, 11 - Nuts; 9 - Screws; 10 - Cover/towing eye.
