Adjusting the V-belt tension (VW Golf 2)

  • Main
  • Golf
  • Golf 2
  • Chassis
  • Steering
  • Adjusting the V-belt tension
            0


The V-belt of the power steering pump drive is considered to be correctly tensioned when its deflection between the pulleys from finger pressure is no more than 10 mm. When purchasing a belt, you should specify the car model. The belt fastening and adjustment elements are shown in Figure 396.

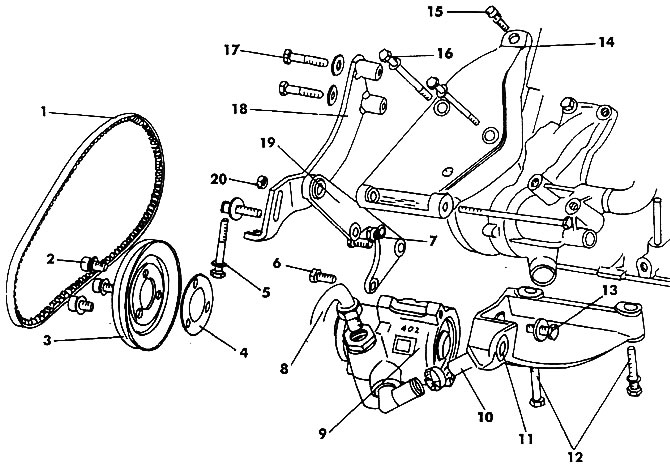

Figure 396. Power steering pump mounting elements: 1 - V-belt; 2, 6, 12, 13, 15, 16, 17 - bolts (20…

Figure 396. Power steering pump mounting elements: 1 - V-belt; 2, 6, 12, 13, 15, 16, 17 - bolts (20 Nm); 3 - pulley; 4 - intermediate disk; 5 - tensioner bolt; 7, 20 - nuts i (20 Nm); 8 - drain line branch pipe; 9 - pump; 10 - pressure main branch pipe; 11 - rear bracket; 14 - mounting bracket; 18 - belt tensioner bracket; 19 - front bracket
