Removing
1. Slide the sunroof sunblind back.
2. Open the hatch.

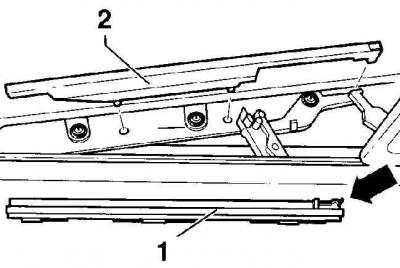

3. Move forward, in the direction of the arrow, the pad (1) at the rear, release the spring clip and separate the trim from the ceiling (1 - bottom pad, 2 - top pad).
4. Disconnect the lining spring clips (2) in the front, middle and back.

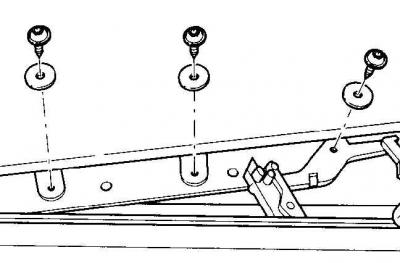

5. Using a T25 Torx screwdriver, unscrew the fixing screws.
6. Move the sunroof cover and remove it upwards.
Installation
Installation is made in sequence, return to removal. Tighten the cover screws to 4.5 Nm.
