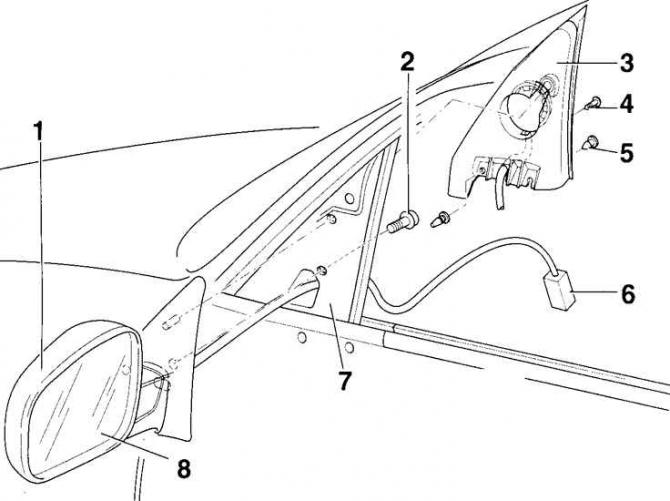

Outside rear view mirror
- 1 - mirror housing;
- 2 - bolt, 10 Nm;
- 3 - Interior decorative trim of the exterior mirror;
- 4 - screw;
- 5 - spring clamp;
- 6 - electrical connector;
- 7 - damper;
- 8 - mirror glass
Removal
1. To protect the mirror glass from damage, cover the bottom edge of the mirror with adhesive tape.
2. Using a thin plastic sheet, starting from the bottom, separate the mirror glass from the mirror housing.
Installation
1. When installing, align the mirror mounting pins and press the mirror into the housing.
2. If a new mirror glass is being installed, make sure it is the same type. The glass and mirror housing are identified on the back.
Warning: Wear gloves and press only on the central part of the mirror.
