Removing
Remove an internal upholstery of a door.
Carefully peel off the protective film so as not to tear.
Lower glass 5 (pic. 465) or 9 (pic. 466) and disconnect it from the window lift mechanism. Lower the glass on the door.

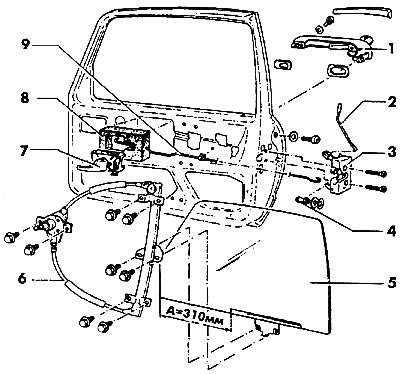

Pic. 465. Front door from August 1987: 1 - handle; 2 - blocking rod; 3 - door lock; 4 - locking finger (installed on the middle rack); 5 - door glass; 6 - power window mechanism (tightening torque of its bolts 7 Nm); 7 - internal handle for opening the door; 8 - facing of the handle; 9 - thrust

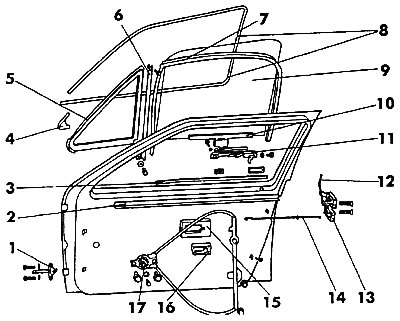

Pic. 466. Front door before August 1987: 1 - door stop; 2 - inner glass lining; 3 - outer glass gasket; 4 - outer corner of the decorative cornice; 5 - corner glass; 6 - guide; 7 - lining of the glass guide; 8 - decorative cornice; 9 - glass; 10 - glass bracket; 11 - inner door handle; 12 - blocking rod; 13 - door lock; 14 - draft of the internal handle of opening of a door; 15 - facing of the handle; 16 - internal handle for opening the door; 17 - power window mechanism
Vehicles from August 1987: Loosen the upper and lower clip mounting bolts and pull the clip down.
Vehicles manufactured before August 1987: Remove corner glass 5 (see fig. 466) doors. To do this, release the outer corner 4 of the decorative cornice inside at the place of the bevel.
Pull up the glass gaskets.
Pull up the window glass.
Installation
Insert window glass from above.
Vehicles manufactured before August 1987: Insert spruce door glass.
Vehicles manufactured since August 1987: Insert the clip so that the window glass sits in it and fix the clip on top of the frame and on the door opening.
Insert glass seal.
Fasten the window glass to the window lifter, maintaining dimension A (see fig. 465). Raise and lower the glass several times. If the glass moves with difficulty, lower the window lifter mounting bolts. Align the window mechanism, tighten the bolts.
Apply the protective film carefully. Glue the torn film with adhesive tape.
Attention! If the protective film is missing or damaged, drafts may occur in the vehicle.
