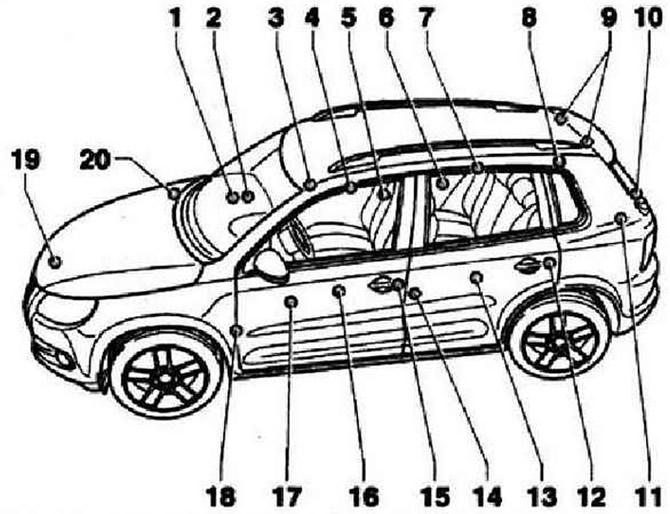

- 1 - Central control unit for comfort systems "J393". Installation location: under the dashboard on the front passenger side
- 2 - Block. Installation location: right pillar A, to disconnect the connector, remove the corrugated cover from the pillar
- 3 - Front right door control unit "J387", integrated into the window lift motor
- 4 - Front right door lock "F221". The door lock is attached to the supporting panel, the central lock actuator is built into the door lock
- 5 - Block. Installation location: right B-pillar. To disconnect the connector, remove the corrugated cover from the pillar
- 6 - Rear right door control unit "J389", integrated into the window lift motor
- 7 - Rear right door lock "F223". The door lock is attached to the supporting panel, the actuator of the central lock is built into the door lock
- 8 - Fuel filler flap locking motor -V155-. Installation location: on the fuel filler flap
- 9 - Rear door block. Installation location: left under the luggage compartment trim
- 10 - Unlocking device with key "E234"
- 11 - Trunk lid lock "F256". Installation location: attached to the trunk lid
- 12 - Rear left door lock "F222". The door lock is attached to the supporting panel, the central lock actuator is built into the door lock
- 13 - Rear left door control unit "J388", integrated into the window lift motor
- 14 - Block. Installation location: left pillar B, to disconnect the connector, remove the corrugated cover from the pillar
- 15 - Front left door lock "F220". The door lock is attached to the supporting panel, the central lock actuator is built into the door lock
- 16 - Front left door control unit "J386", integrated into the window lift motor
- 17 - Central window lifter control switch "E189". Installation location: in the door trim
- 18 - Block. Installation location: left pillar A, to disconnect the connector, remove the corrugated cover from the pillar
- 19 - Hood limit switch "F266". Installation location: on the hood lock
- 20 - Alarm siren "N12". Installation location: in the water drainage box
