Checking the thermal clearance in the joints of piston rings (VW Caddy 3)

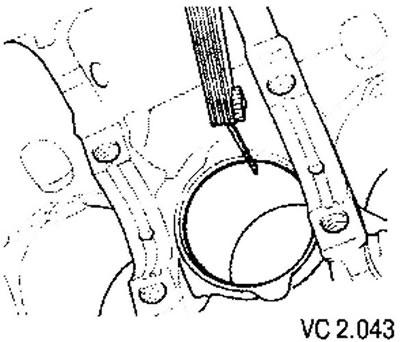

To check, install the ring into the cylinder (using a piston as a mandrel) so that the plane of the ring is perpendicular to the axis of the cylinder, at a distance of approximately 15 mm from its lower edge.

Piston ring joint clearance values

	Gap for a new ring	Wear limit clearance
1st compression ring	0.20-0.50 mm	1.0 mm
2nd compression ring	0.40-0.70 mm	1.0 mm
Oil scraper ring (1*)	0.40-1.40 mm

(1*) It is impossible to provide data on the wear limit.
