Attention!
- If a new diesel particulate filter is installed on a vehicle, it is necessary to check the degree of soot filling of the diesel particulate filter.
- After installing the exhaust system components, it is necessary to check for the absence of internal stress in the system, as well as the presence of sufficient distance between the system components and the body. If necessary, the double and clamp clamps must be unscrewed and the exhaust pipe and muffler must be directed in such a way that there is sufficient distance to the body and the fasteners are loaded evenly.
- Self-locking nuts must be replaced.

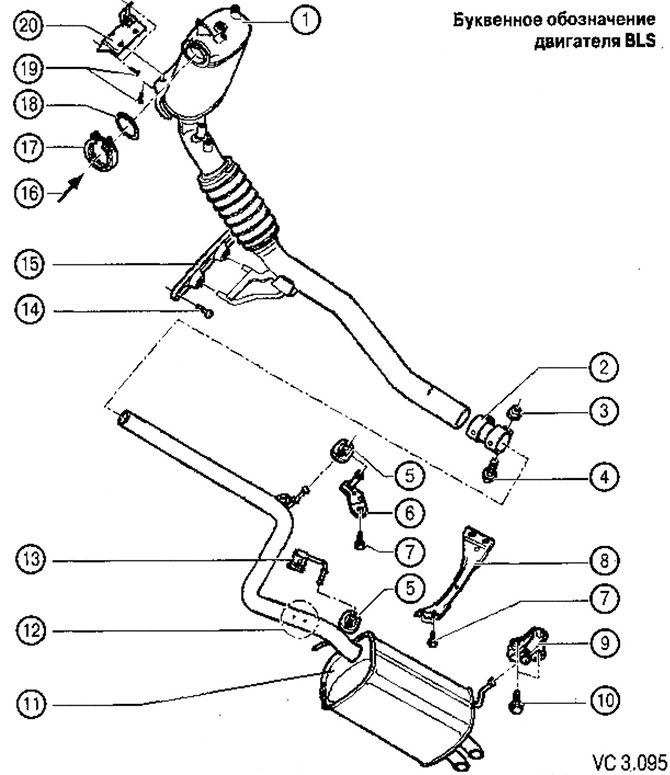

List of parts and assemblies with notes on installation work for Figure VC3.095:
1. Diesel particulate filter.
2. Double clamp.
3. 25 Nm.
4. Bolt.
5. Suspension.
6. Bracket:
- install in the proper position.
7. 25 Nm.
8. Crossbar.
9. Bracket with suspension.
10. 25 Nm.
11. Rear muffler.
12. Disconnection point:
- marked on the pipe using a stamping;
- in serial production, the exhaust pipe and rear muffler are installed as one part. In case of repair, the pipe and muffler are supplied separately;
- a double clamp is supplied to connect them;
- mounting position of the rear double clamp;
- tighten the threaded connections of the double clamp evenly;
- tightening torque of double clamp threaded connections: 25 Nm;
- disconnection of pipes.
13. Bracket.
14. 25 Nm.
15. Bracket.
16. To the turbocharger.
17. Screw clamp: 7 Nm.
18. Sealing:
- replace with a new one during assembly.
19. Screw for fastening the pipe to the bracket: 25 Nm.
20. The bracket is attached to the cylinder block.
