Carburetor:

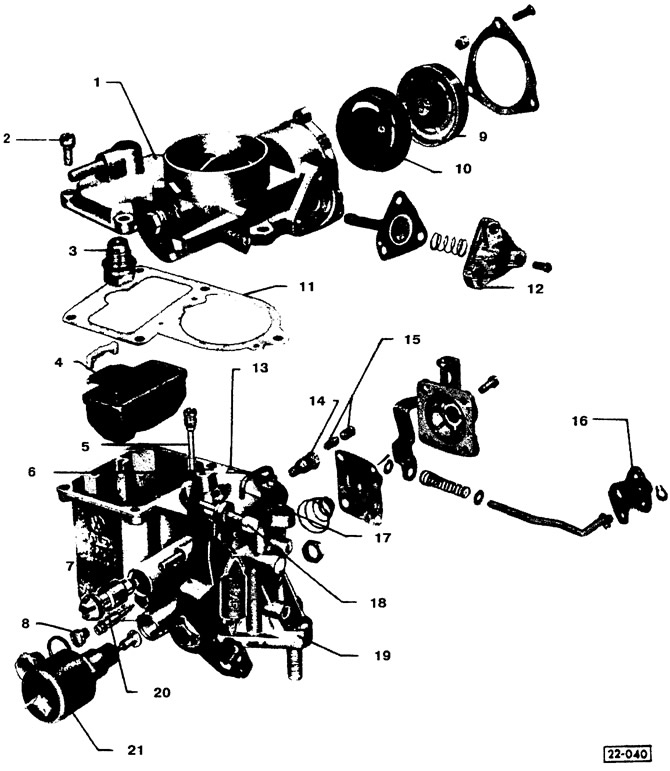

1 - carburetor cover; 2 - bolt; 3 - needle valve float; 4 - float with an axis; 5 - corrective air jet with a mixing tube; 6 - idle air jet; 7 - adjusting screw for idle speed; 8 - main jet; 9 - starter cover (set to middle mark); 10 - cover-liner (observe the installation position); 11 - sealing gasket (replace); 12 - cover (observe the installation position); 13 - additional air jet; 14 - idle jet; 15 - additional fuel jet and threaded plug; 16 - double lever (adjust the amount of fuel supplied); 17 - atomizer (check the amount of atomized fuel; in Kafer 1300 vehicles, take into account the temperature of the carburetor body (see table at the end of the chapter) and spray direction); 18 - limit screw (throttle clearance adjustment); 19 - carburetor body (if damaged, replace the entire carburetor); 20 - screw for adjusting the CO content in the exhaust gases (check and adjust the composition of the combustible mixture at idle); 21 - fuel cut-off valve (should click when the ignition is turned on)
