Air Filter — removal and installation (2.4l engine models) (VW Lt 28)

4. Remove the cover located behind the driver's seat (see photo).

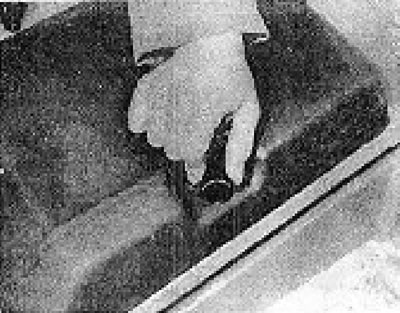

Photos 6B.4. Removing the cover behind the front seat.

Photos 6B.4. Removing the cover behind the front seat.

5. Loosen the clamps on the air cleaner cover and remove it (see photo).

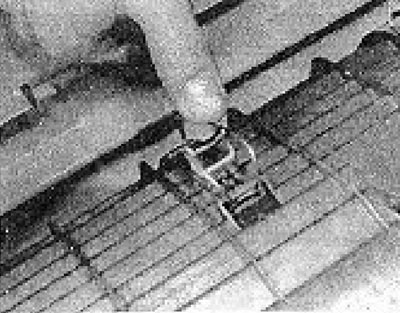

Photo 6B.5. Release the air cleaner cover clamps.

Photo 6B.5. Release the air cleaner cover clamps.

View the original on this portal (vwmanual)

6. Unscrew the nut securing the filter and remove the filter (see photos).

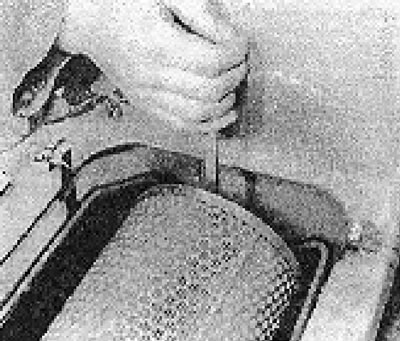

Photo 6B.6A. Unscrew the nut securing the air filter.

Photo 6B.6A. Unscrew the nut securing the air filter.

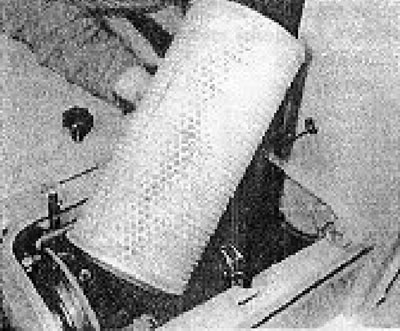

Photo 6B.6V. Remove the air filter.

Photo 6B.6V. Remove the air filter.

7. The filter is installed in reverse order.
