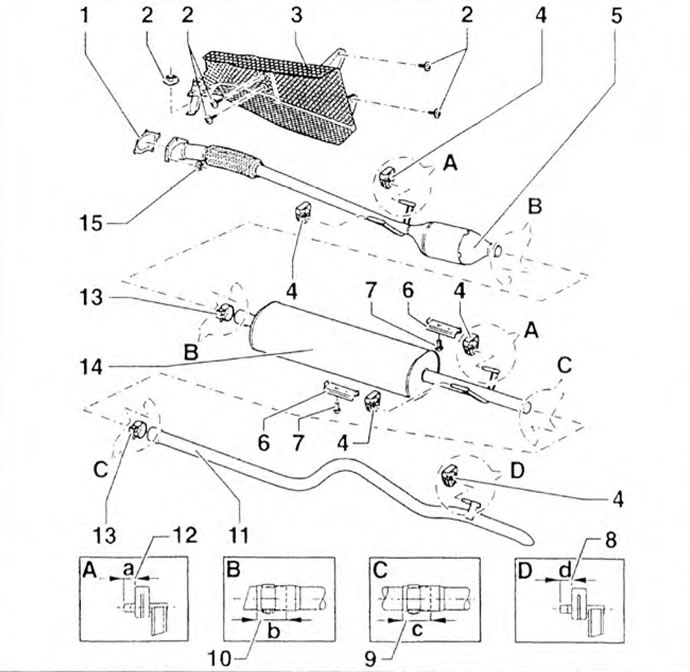

Figure 3.47a. AHD engine exhaust system: 1 - Gasket; 2, 15 - Nut: 2.1,7 - Bolts; 3 - Heat-protective casing: 4 - Fastening rings; 5 - Catalyst: 6 - Support: 8 - Distance "d" (minimum 23 mm); 9 - Distance "c" (55 + 10 mm); 10 - Distance "b" (45 - 52 mm); 13 - Clamps; 14 - Muffler.

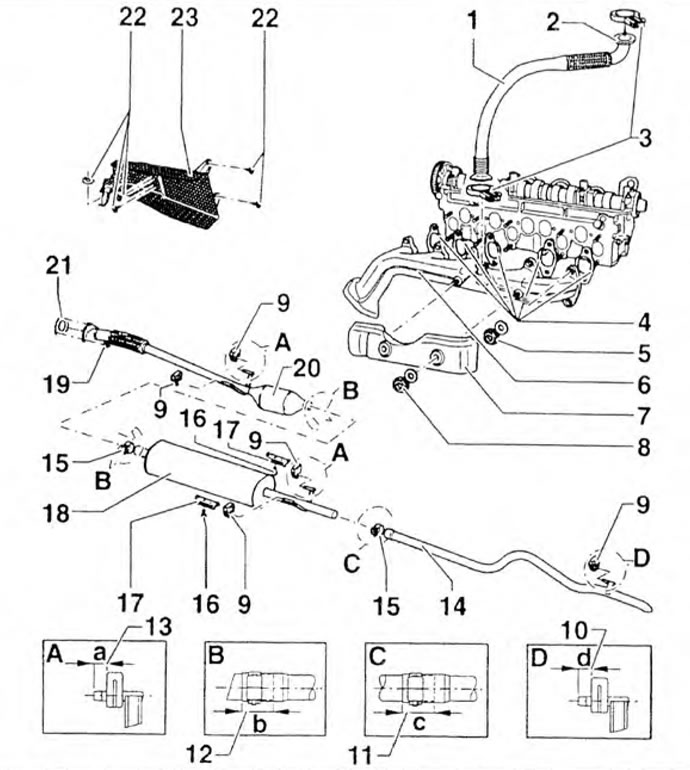

Figure 3.47b. AGX engine exhaust system: 1 - Connecting pipe: 2 - To the EGR valve; 3, 15 - Clamps; 4, 21 - Gaskets, 5, 8, 22 - Nuts and bolts, 6 - Exhaust manifold, 7, 23 - Heat shields; 9 - Fastening rings; 10 - Distance "d" (minimum 23 mm); 11 - Distance "c" (55 + 10 mm); 12 - Distance "b" (45 - 52 mm); 13 - Distance "a" (minimum 20 mm); 14 - Muffler pipe;16 - Bolt; 17 - Support; 18 - Muffler; 19 - Nut; 20 - Catalyst.

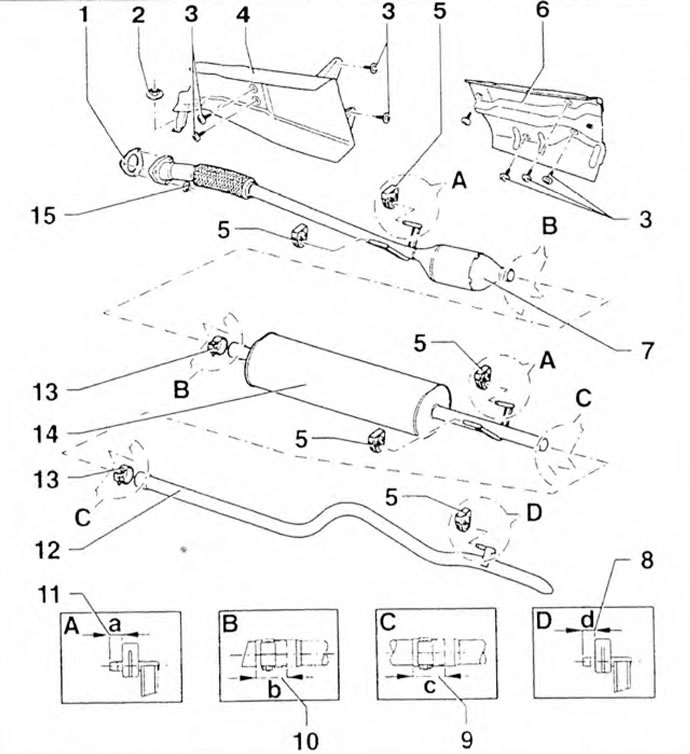

Figure 3.47c. ANJ engine exhaust system: 1 - Gasket; 2, 15 - Nuts; 3 - Bolts; 4.6- Heat-protective casings; 5 - Fastening rings; 7 - Catalyst; 8 - Distance "d" (minimum 23 mm); 9 - Distance "c" (55 + 10 mm);10 - Distance "b" (45 - 52 mm); 11 - Distance "a" (minimum 20 mm); 12 - Muffler pipe; 13 - Clamps; 14 - Muffler.

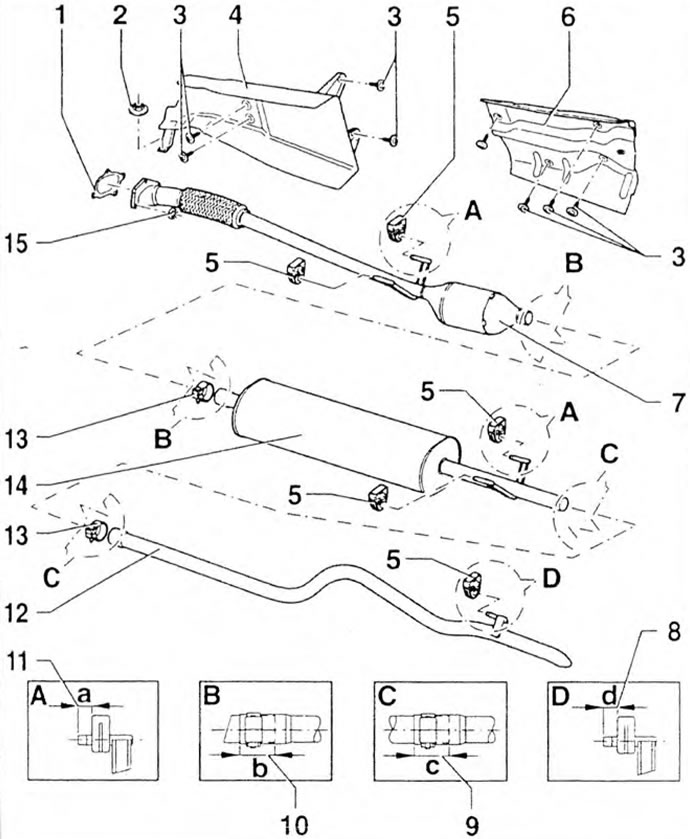

Figure 3.47g. Exhaust system of ARA, VVE, BBF engines: 1 - Gasket; 2, 15 - Nuts; 3 - Bolts; 4, 6 - Heat-protective casings; 5 - Fastening rings; 7 - Catalyst; 8 - Distance "d" (minimum 23 mm); 9 - Distance "c" (55 + 10 mm); 10 - Distance "b" (45 - 52 mm); 11 - Distance "a" (minimum 20 mm); 12 - Muffler pipe: 13 - Clamps;14 - Muffler.
