Contents: Removal ↓ Installation ↓
Removal

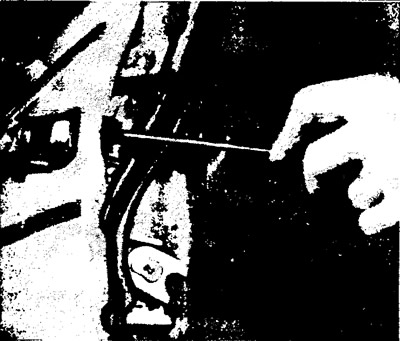

Remove the Phillips head screw near the door lock. Pull forward and remove the door handle.
To remove the lock cylinder, insert the key into the lock (otherwise the cylinder plates will fall out).

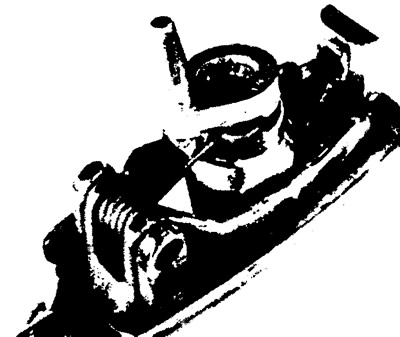

Loosen the lock mounting bolt, remember the position of the spring, remove the bracket and spring. Remove the cylinder.
If the key needs to be removed from the cylinder, wrap the cylinder with insulating tape.
Installation
Insert the key into the lock cylinder, install the spring and secure its ends, install and secure the bracket.
insert the handle into the door, slide it back, screw in the Phillips head screw.
