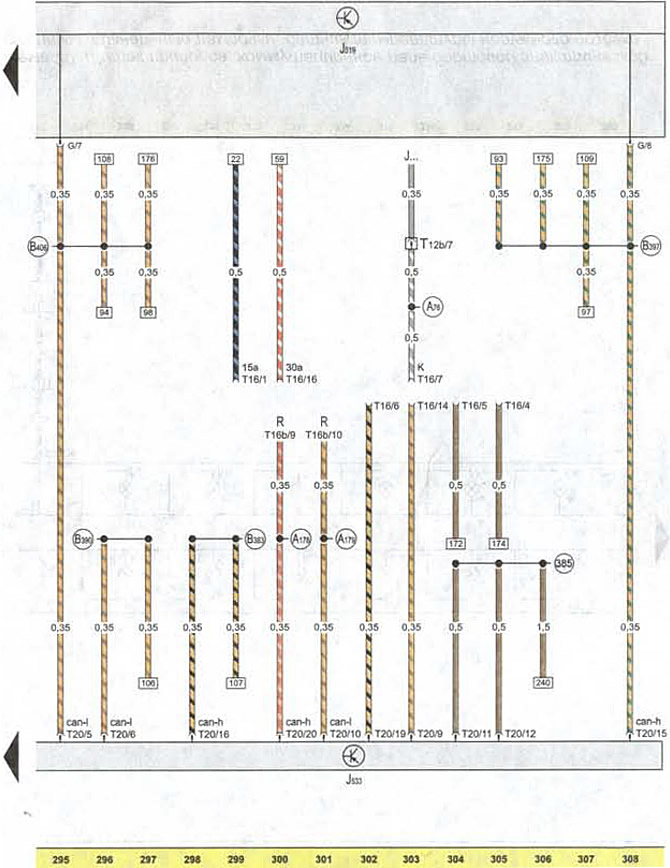

- J... engine control units
- J519 On-board electrical system switching relay
- J533 diagnostic socket
- R radio receiver
- T12b 12-pin plug on the left side of the fairing box
- T16 16-pin diagnostic connector plug on the instrument panel on the left
- T16b 16-pin plug
- T20 20-pin plug
- 385 connection to "ground" (-) 20 in the main wiring harness
- A76 line K self-diagnostic system
- A178 Connection of the data bus for switching the cabin instruments (High) in the wiring harness of the instrument panel
- A179 Connection of the data bus for switching the cabin instruments (Low) in the wiring harness of the instrument panel
- B383 Connection 1 of the switching bus of the control units of the powertrain and chassis (High) in the main wiring harness
- B390 Connection 1 of the switching bus of the control units of the powertrain and chassis (Low) in the main wiring harness
- B397 Connection 1 of the comfort signal bus (High) in the main wiring harness
- B406 Connection 1 of the comfort system signal switching bus (Low) in the main wiring harness
