Scheme 21. Instrument cluster, diagnostic connector, signal lamps (VW Golf 5)

  • Main
  • Golf
  • Golf 5
  • Electrical equipment
  • Electrical circuits
  • Scheme 21. Instrument cluster, diagnostic connector, signal lamps
            0


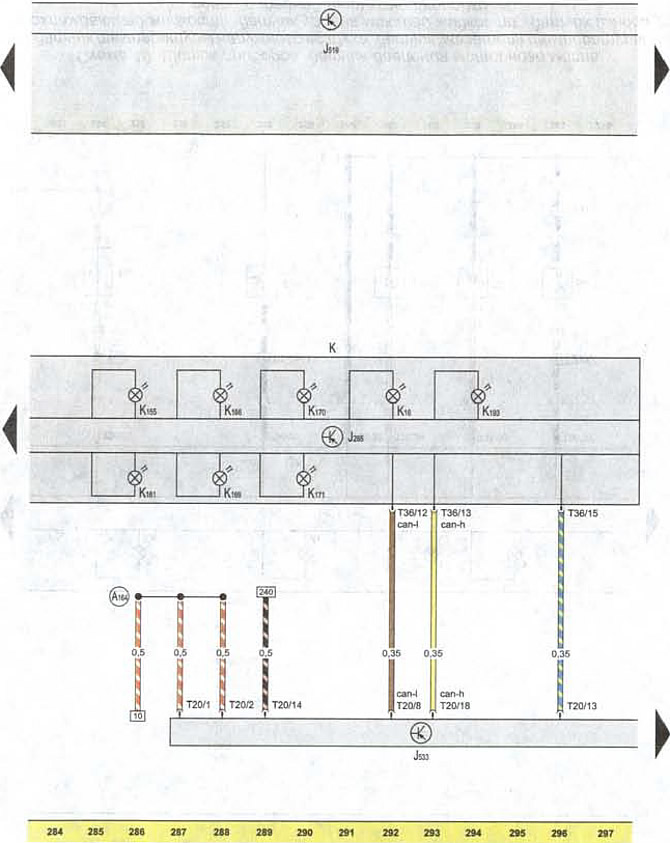

Scheme 21. Instrument panel, diagnostic connector, signal lights:

Scheme 21. Instrument panel, diagnostic connector, signal lights:

  • J285 Instrument cluster relay
  • J519 On-board electrical system switching relay
  • J533 diagnostic socket
  • To the instrument panel
  • K3 fuel reserve indicator light
  • K155 Electronic Stability Control System Indicator Light
  • K161 Electromechanical power steering indicator light
  • K166 Door open indicator light
  • K169 Automatic transmission control lever lock indicator light
  • K170 warning light for a burnt out bulb in the lighting system
  • K171 bonnet open indicator light
  • K193 Rear seat backrest not locked indicator light
  • T20 20-pin plug
  • T36 36-pin plug
  • A164 compound 2 with positive potential (terminal 30a) in the instrument panel wiring harness
