Scheme 16. Hazard warning light switch, hazard warning light... (VW Golf 5)

  • Main
  • Golf
  • Golf 5
  • Electrical equipment
  • Electrical circuits
  • Scheme 16. Hazard warning light switch, hazard warning light...
            0

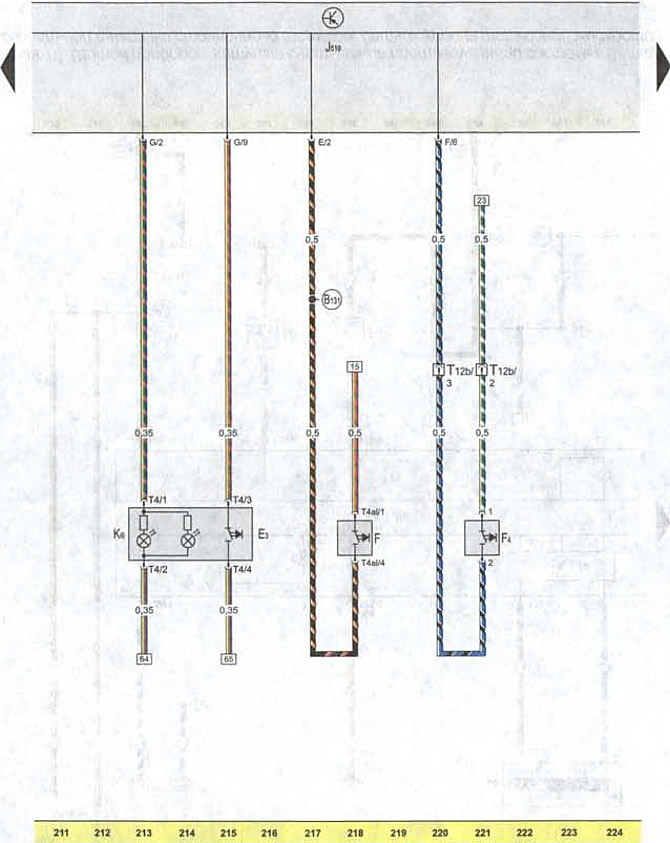

Diagram 16. Hazard warning light switch, hazard warning light indicator lamp, brake light switch, reversing light switch:

Diagram 16. Hazard warning light switch, hazard warning light indicator lamp, brake light switch,…

  • E3 Hazard warning light switch
  • F contact switch brake lights
  • F4 Reverse Light Switch
  • J519 On-board electrical system switching relay
  • K6 hazard warning light indicator
  • T4 4-pin plug
  • T4a1 4-pin plug
  • T12b 12-pin blue plug on the left side of the fairing box
  • B131 connection (terminal 54) in the passenger compartment wiring harness


(The original text can be found on the portal www.VWmanual.ru)

This article is available at russian, bulgarian, belarusian, ukrainian, serbian, croatian, romanian, polish, slovak, hungarian
The text has been checked: Kolesnikov Artem
