Front
To tow the vehicle, first remove the right grille at the bottom of the front bumper and screw in the towing eye. The towing eye is located along with the on-board tool.

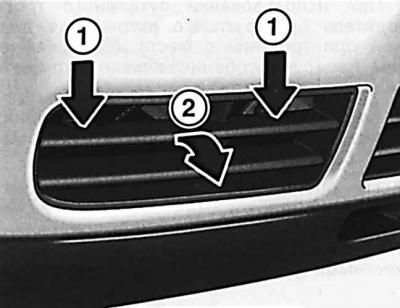

1. Press with your fingers firmly in the direction of arrow 1 on the upper rib and at the same time pull out the grate in the direction of arrow 2.
2. The lug has a left-hand thread. Screw the eyelet in until it stops and tighten it firmly with the wheel wrench.
3. After use, unscrew the eyelet and stow it together with the on-board tool kit. You must always carry an eyelet with you. Put the cover back in place.
4. Insert the lower part of the grille into the bumper. After that, press the upper part of the grille into the bumper until the locking tabs are firmly fixed.
Rear

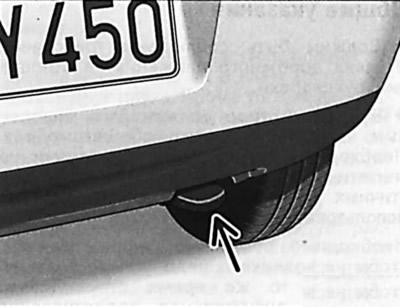

Rear eye (arrow) located under the rear bumper on the right side.
