Processing of the cylinder head seating surface (VW Caddy 3)

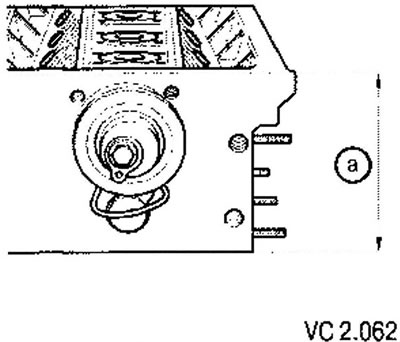

Height (a) of cylinder head after machining: not less than 108.25 mm.

Attention! After machining the cylinder head seating surface, it is necessary to shift the valve installation position in the direction of removing the valve heads from the pistons (i.e., treat the valve seats), because otherwise the valves will collide with the piston. In this case, the minimum permissible size must be observed.
