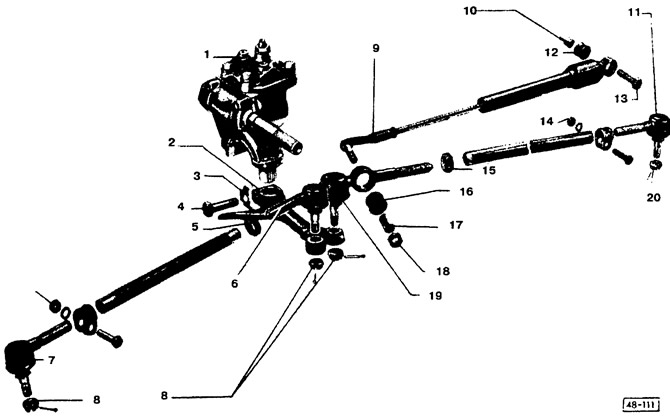

Steering elements: 1 - steering mechanism; 2 - bipod; 3 - lock washer (replace); 4-70 Nm (7.0 kgcm); 5-25 Nm (2.5 kgcm); 6 - tie rod end (curved, right hand thread); 7 - tie rod end (straight, with left-hand thread); 8 - 30 Nm (pull up to the pin hole); 9 - steering shock absorber; 10 - bushing; 11 - tie rod end (straight, right hand thread); 12 - rubber bushing of the shock absorber; 13 - 45 Nm (4.5 kgcm); 14 - 20 Nm (2.0 kgcm); 15 - 25 Nm (2.5 kgcm); 16 - bipod rubber bushing (push in); 17 - bushing; 18 - 25 Nm (2.5 kgcm); 19 - tip of the transverse steering rod of the shock absorber; 20 - 30 Nm (pull up to the pin holes)
Steering elements: 1 - steering mechanism; 2 - bipod; 3 - lock washer (replace); 4-70 Nm (7.0 kgcm); 5-25 Nm (2.5 kgcm); 6 - tie rod end (curved, right hand thread); 7 - tie rod end (straight, with left-hand thread); 8 - 30 Nm (pull up to the pin hole); 9 - steering shock absorber; 10 - bushing; 11 - tie rod end (straight, right hand thread); 12 - rubber bushing of the shock absorber; 13 - 45 Nm (4.5 kgcm); 14 - 20 Nm (2.0 kgcm); 15 - 25 Nm (2.5 kgcm); 16 - bipod rubber bushing (push in); 17 - bushing; 18 - 25 Nm (2.5 kgcm); 19 - tip of the transverse steering rod of the shock absorber; 20 - 30 Nm (pull up to the pin holes)
