Location of relays and fuses (VW Golf 4)

The location of the relays and fuses may vary depending on the vehicle equipment and year of manufacture.

The relays are located behind the left footwell trim under the instrument panel.

On vehicles with a lot of equipment, there is a block of additional relays located behind the base of the main relay block.

Relay blocks R and Z13

Relay block R

I	Two-tone horn relay
II	Intermediate relay contact X
III	Free
IV	Fuel pump relay. Glow plug relay
V	Windscreen wiper relay
VI	Free
A	Fuse for electric seat adjustment
IN	Free
WITH	Fuse for electric windows, central locking and heated outside rear view mirrors

Relay block Z13 above relay block R

1	Fog light relay
2	Rear Door Remote Unlock Relay
3	Starter interlock relay
4	Free
5	Free
6	Distribution relay for radio/telephone
7	Electronic Speed Control (EPS) Relay
8	External lighting relay
9	Fuel pump relay (Syncro-diesel) and alarm control unit - TAXI
10	Alarm control unit - TAXI
11	Starter and reverse lock relay
12	Relay for supplying voltage to terminal 30
13	Radiator Fan Relay (air conditioner)
Fuses on relay block Z13:
D	Free
E	Rear window lifter
F	Flashing light for warning signaling of theft
G	Horn for theft warning alarm

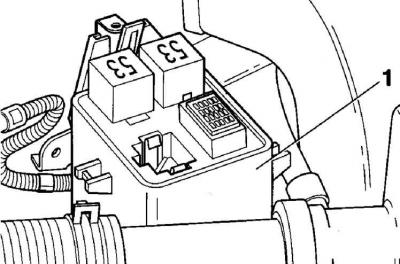

Relay box in the engine compartment of vehicles with TDI diesel engines

The relay box (1) in vehicles with TDI diesel engines is located in the engine compartment behind the air intake pipe.

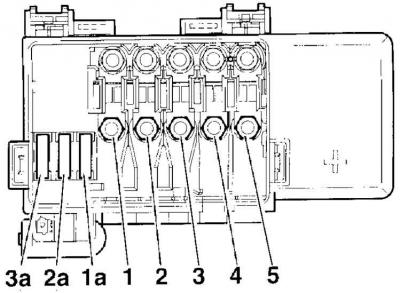

Fuse box above the battery

№	Safety.	Electrical circuit	Current
1	S162	Warming up glow plugs (diesel)	50 A
2	S163	Engine management	50 A
3	S164	Radiator fan	30 A
4	S176	Salon	110 A
1a	S180	ABS (hydraulic pump)	30 A
2a	S179	ABS (valves)	30 A
3a	S178	Radiator fan	30 A
