Generator, battery, starter and ignition system (models 1.6 and 1.8 with carburetor since 01.89) (VW Golf 2)

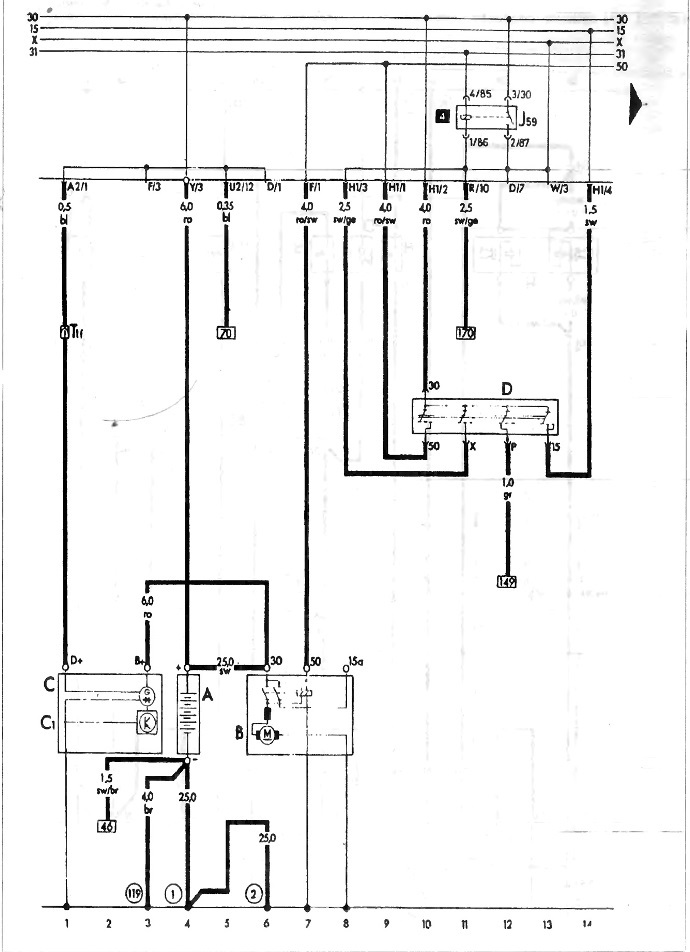

S-61 Wiring diagram of the generator, battery, starter and ignition system. Models 1.6 and 1.8 with carburetor since 01.89.
