Windshield
Examination
Move the wiper arms to their original position. To do this, moisten the window glass with water, turn on the wipers for a short time and stop them using the switch.

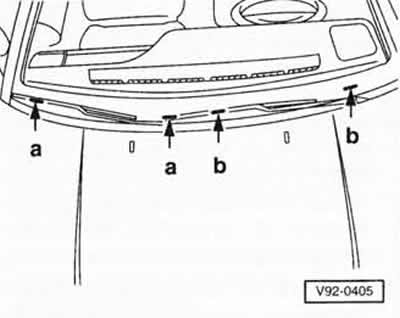

Check if the wiper blades are at the marks -a- on the glass (for cars with right-hand drive - at the marks -b-).
If necessary, remove the wiper arms and rearrange so that the brushes are at the marks. Removing the wiper arm outlined here.
Rear glass
Examination
Move the wiper lever to its original position. To do this, moisten the window glass with water, turn on the wiper for a short time and stop it using the switch.
The distance -a- between the brush and the lower edge of the glass must be 27±5 mm.
If necessary, remove the wiper arm and rearrange it so that the blade is at the prescribed distance from the lower edge of the glass. Removing the rear wiper arm outlined here.
