Contents: Dismantling ↓ Installation ↓
Dismantling
Use a screwdriver to remove the cap from the windshield wiper shaft.
Unscrew the hex nut and remove the brush holder.
Installation

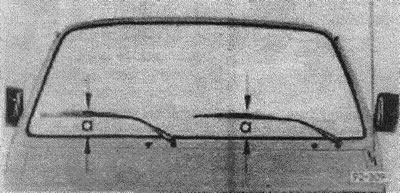

(92-309) install the brush holder so that the wiper blades lie parallel to the windshield seal and a distance of a = 70 mm is maintained.
Place the elastic washer, screw on the hex nut and tighten it carefully. Put on the cap.
