Volume of the lubrication system with oil filter: 8.5 l.
The lubrication system is shown in the figure 4.38a,b.

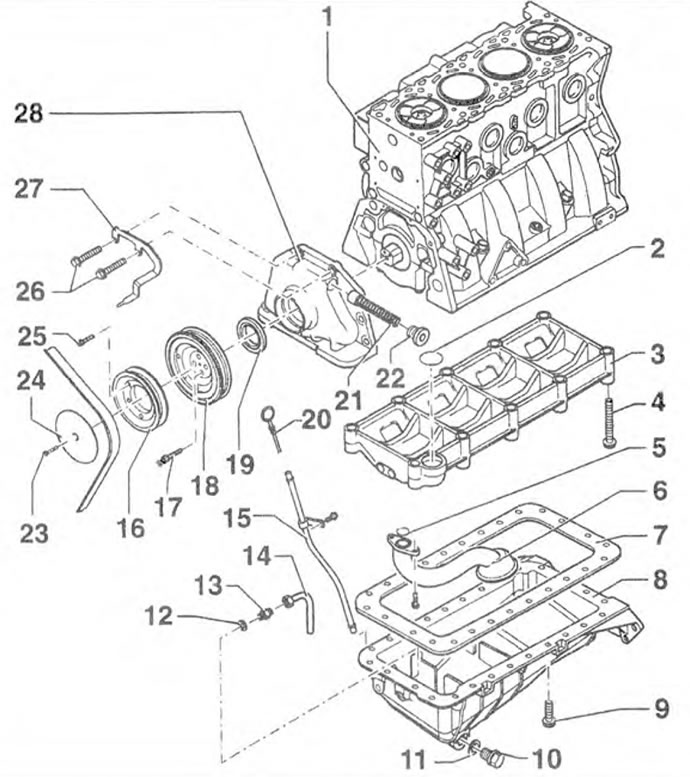

Figure 4.38a. Lubrication system: 1 - Cylinder block; 2, 5, 12, 19 - Sealing rings; 3 - Oil separator; 4, 9, 17, 23, 25, 26 - Bolts; 6 - Oil intake; 7 - Oil pan gasket; 8 - Pallet; 10 - Cork; 11- Washer; 13 - Threaded connection; 14 - Oil pipeline; 15 - Oil level indicator tube; 16 - Pulley; 18 - Damper with pulley: 20 - Oil level indicator; 21 - Spring; 22 - Locking plug: 24 - Damper cover; 27 - TDC marker; 28 - Oil pump.

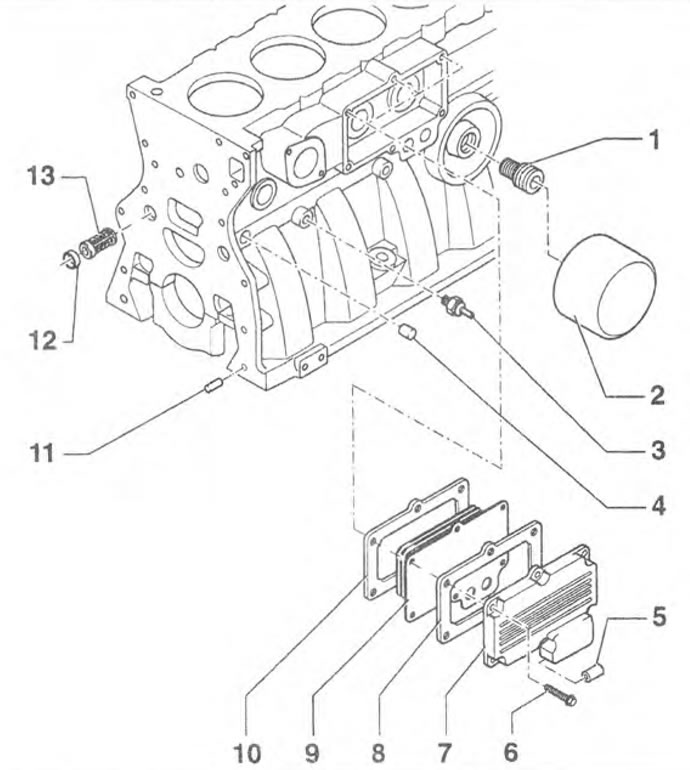

Figure 4.38b. Lubrication system: 1 - Threaded connection; 2 - Oil filter; 3 - Oil pressure sensor; 4 - Limiter; 5 - Bypass valve; 6 - Bolt; 7 - Oil cooler cap; 8 - Oil radiator; 9 - Lid; 13 - Pressure reducing valve.
