1 - windshield wiper lever; 2 - nut
Removal
The windshield wiper arms in Kafer 1303 vehicles are different and are marked with the letters "L" and "R" (left and right).
Use a screwdriver to remove the protective cap from the windshield wiper arm.
Unscrew the lever mounting nut and remove the lever.
Installation

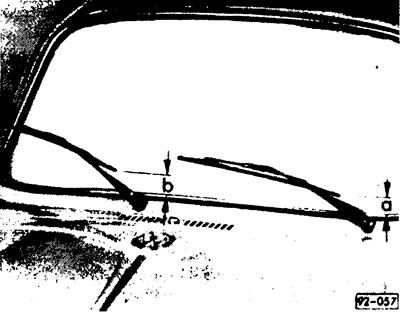

Install the windshield wiper arm so that the distances shown in the figure are observed.
Place the wave washer on the wiper shaft, screw on the nut and tighten it (not too tight). Install the protective cap on the nut.
