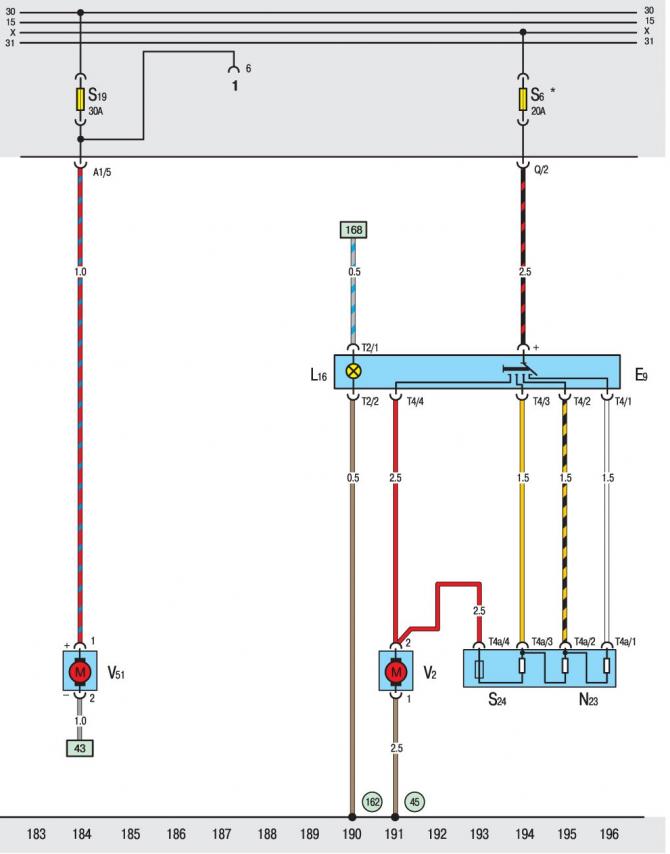

Diesel: heating fan, additional cooling pump
- E9. Fan switch
- L16. Ventilation and heating system control illumination lamp
- N₂3. Additional resistances for the ventilation system fan
- S24. Fan fuse
- T4. Four-pin fan switch connector
- T4a. Four-pin connector of the additional resistance block
- V2. Electric motor of the fan of the ventilation and heating system
- V51. Electric motor of additional pump of cooling system
- 45. Ground connection point behind the instrument panel, in the center
- 162. Ground connection in fan harness
- C10. Positive connection (30) in the headlight harness
* The rating of fuse S6 has been increased to 30 A.
