Diesel (ABB): additional cooling pump (VW Transporter T4)

  • Main
  • Transporter
  • Transporter T4
  • Electrical equipment
  • Electrical circuits
  • Diesel (ABB): additional cooling pump
            0

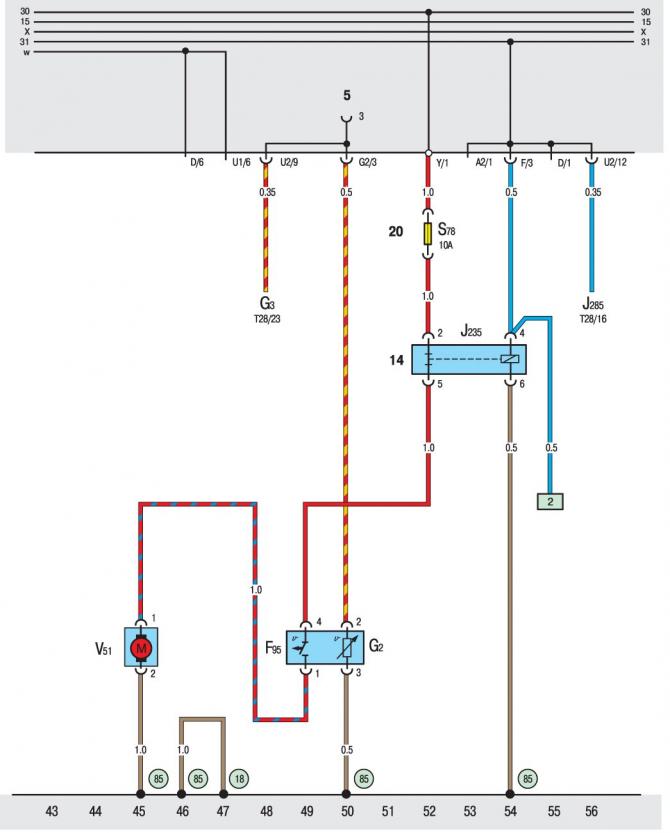

Diesel (ABB): additional cooling pump



Diesel (ABB): additional cooling pump

  • F95. Cooling system thermal switch
  • G2. Cooling system temperature gauge sensor
  • G3. Cooling system temperature gauge
  • J235. Additional coolant pump relay
  • J285. Control unit for instrument cluster control instruments
  • S78. Fuse for additional coolant pump
  • 18. Ground connection point in the engine compartment
  • 85. Ground connection point "1" in the engine compartment harness

(View the original on this resource www.VWManual.ru)

This article is available at russian, bulgarian, belarusian, ukrainian, serbian, croatian, romanian, polish, slovak, hungarian
The text has been checked: Orlov Dmitry
