Diesel: cooling system fans (2x350W) (VW Transporter T4)

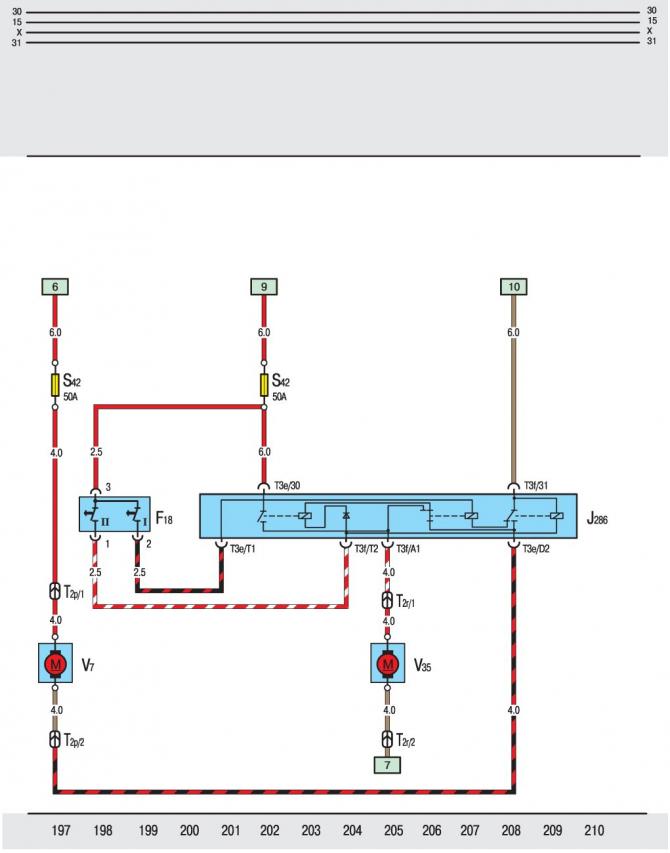

Diesel: cooling system fans (2x350W)

Diesel: cooling system fans (2x350W)

F18. Cooling system fan thermal switch
J286. Relay for sequential and simultaneous switching of electric motors of cooling system fans
S42. Fan motor fuses
T2r. Two-pin connector in the engine compartment at the front
T3ef. Three-pin connector relay J286
V7. Electric motor of the fan of the 1st stage
V35. Fan motor II - stage

(View the original article on the resource www.VWMANUAL.ru)

This article is available at russian, bulgarian, belarusian, ukrainian, serbian, croatian, romanian, polish, slovak, hungarian

The text has been checked: Orlov Dmitry
