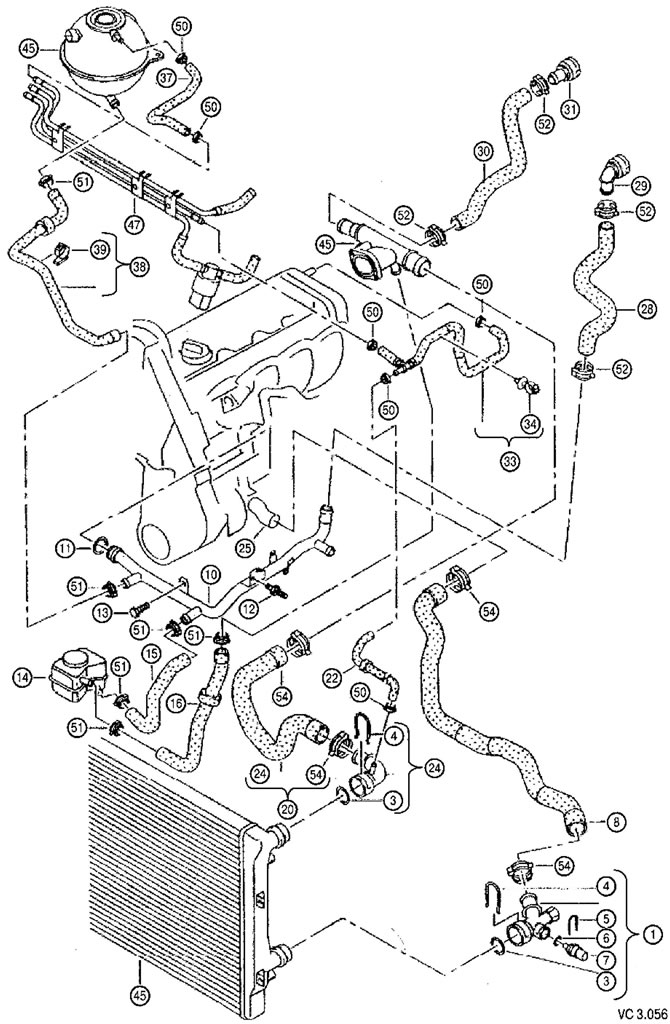

Specification of components and parts of the cooling system for diesel engines 1.9 l BJB to drawing VC3.056
Pos. | Detail number | Name | Note | PC. |
liquid cooling | ||||
(1) | 1K0 122 291 R | Quick coupler for cars: - without air conditioning; - with a trailer; - operated in cold and moderate climatic zones F2K-7-050 000 | 1 | |
1 | 1K0 122 291AD | Quick coupler for vehicles with air conditioning | 1 | |
(1) | 1K0 122 291AD | Quick coupler for vehicles with a trailer | 1 | |
(1) | 1K0 122 291AD | Quick coupler for cars: - operated in a hot climate; - without air conditioning; - with trailer F2K-7-050 000* | 1 | |
3 | Sealing ring | 32x4 | 2 | |
4 | 1J0 121 142 | spring latch | ||
5 | 032 121 142 | spring latch | 1 | |
6 | Sealing ring | 19,6x3,6 | 1 | |
7 | coolant temperature sensor | |||
8 | 1К0121051 J | coolant hose | 1 | |
10 | 038121 065 CS | water tube | 1 | |
11 | 06B 121687 | Sealing ring | 20,5x5,5 | 1 |
12 | Double hex screw | M10x20M8x12 | 1 | |
13 | Self-locking hexagonal screw | М7х12 | 1 | |
14 | Engine oil cooling heat exchanger | |||
15 | 1K0121 058 JSC | Engine oil cooler return hose | 1 | |
16 | 1К0121096 АВ | Engine oil cooler pressure hose | 1 | |
20 | 1X0122 101 8P | Radiator Inlet Hose | 1 | |
22 | 1K0121 447AM | Hose of the vapor and coolant discharge line to the expansion tank | 1 | |
24 | 6Q0 122291 E | Radiator Inlet Hose Quick Coupling | 1 | |
25 | BC inlet | |||
28 | 1T0121 073 N | Heater return hose | 1 | |
29 | 1X0122291 J | Heater return hose quick coupling | 1 | |
30 | 1Т0121 157 F | Heater pressure hose | 1 | |
31 | 3V0 122291 V | Heater pressure hose quick coupling | 1 | |
33 | 1K0 1 22 447 BS | Vapor Discharge Hose | 1 | |
34 | bracket | AZ-14xS13-6.5 | 1 | |
37 | 1K0121447T | Vapor Discharge Hose | 1 | |
38 | 1K0 122109AA | Hose of the lower branch pipe of a broad tank | 1 | |
(38) | 1K0122109AR | Hose of the lower branch pipe of a broad tank | 1 | |
39 | 1К0121093А | Hose bracket | 1 | |
45 | Radiator | |||
47 | Fuel heating pipes | |||
50 | collar | A14x12 | ||
51 | collar | 823x12 | ||
52 | collar | 27x12 | ||
53 | collar | В32х12 | ||
54 | collar | 40x12 |
