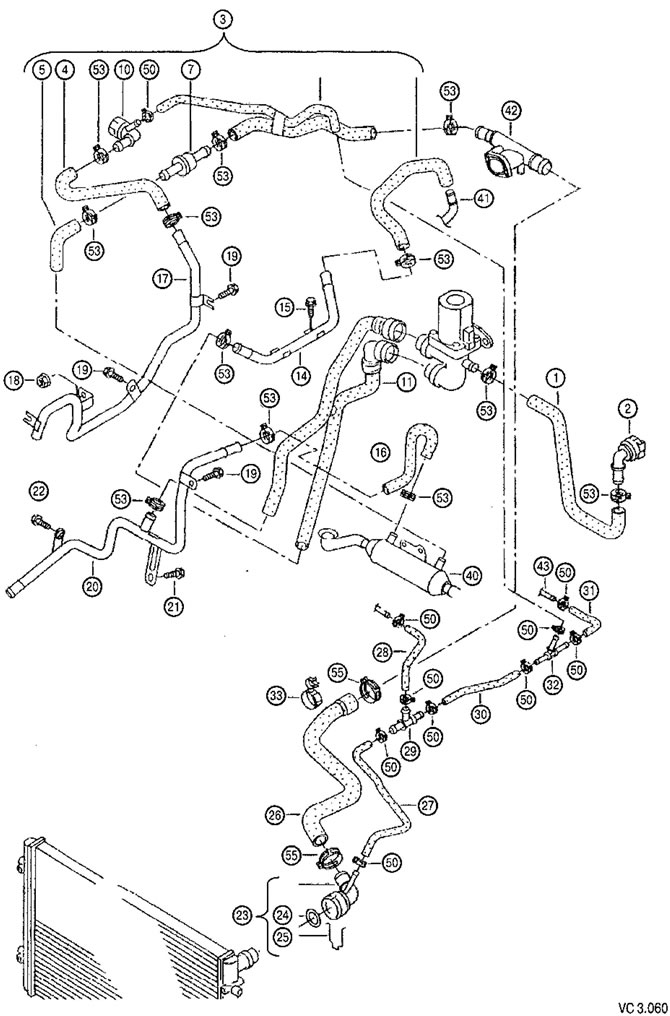

Specification of components and parts of the cooling system of a diesel engine 2.0 l BST for vehicles with an auxiliary heater and for vehicles with an additional heating system to drawing VC3.060
Pos. | Detail number | Name | Note | PC. |
1 | 2K0 073 S122 | Water Hose Quick Coupling | 1 | |
2 | 1K0 2910122 | quick coupling | 1 | |
3 | 2K0122157 YES | Water hose with quick coupling | ||
4 | 2K0121157L | coolant hose | 1 | |
5 | 2K012115?M | coolant hose | 1 | |
7 | 1J0122351 | Check Valve | 1 | |
10 | IC0122291A | Coupling, quick action | 1 | |
11 | 1K0122157BJ | Water hose with quick coupling | 1 | |
14 | 1К0121070Р | water tube | 1 | |
15 | Hex head screw | M6x15 | 1 | |
16 | 1K0121157 VN | coolant hose (exhaust gas cooler - coolant return manifold) | 2 | |
17 | 03G121 151 R | water tube | Back, master. | 1 |
18 | Nut, hex | M8 | 1 | |
19 | Screw | MI0X12 | ||
20 | 03G 121 151C | Water pipe for vehicles with auxiliary heater | Force, master. | 1 |
(20) | 03G 121 151Q | water pipe for cars with additional heating system | Force, master. | 1 |
21 | Hex head screw | M6x12 | 1 | |
22 | Screw | M8x20 | 1 | |
23 | 6Q0122291 E | Coupling, quick action | 1 | |
24 | Sealing ring | 32X4-N | 1 | |
25 | 1J0121 142 | spring latch | 1 | |
26 | 1К0121101АА | Radiator Inlet Hose | 1 | |
27 | 1К0121447 BJ | coolant hose | 1 | |
28 | 1K0121447BC | coolant hose | 1 | |
29 | Tee | 8x8x8 | 1 | |
30 | 1К0121 447 CD | coolant hose | 1 | |
31 | 1K0121 447 SS | coolant hose | 1 | |
32 | 1K0121 087 V | Distributor | 1 | |
33 | 1K0 121 093 M | Hose bracket | 1 | |
40 | Exhaust cooler (exhaust gas recirculation system) | 121-4543 | ||
41 | coolant return manifold | 121-4510 | ||
42 | coolant manifold | 121-4540 | ||
43 | Vapor Discharge Hose a Expansion Tank | 121-4523 | ||
50 | collar | В14х12 | ||
55 | collar | 640x12 |
