Engine management system for ARA and ANJ 2.5 TDI engines since September 2000 and BBE and BBF 2.5 TDI engines since May 2001 (V).

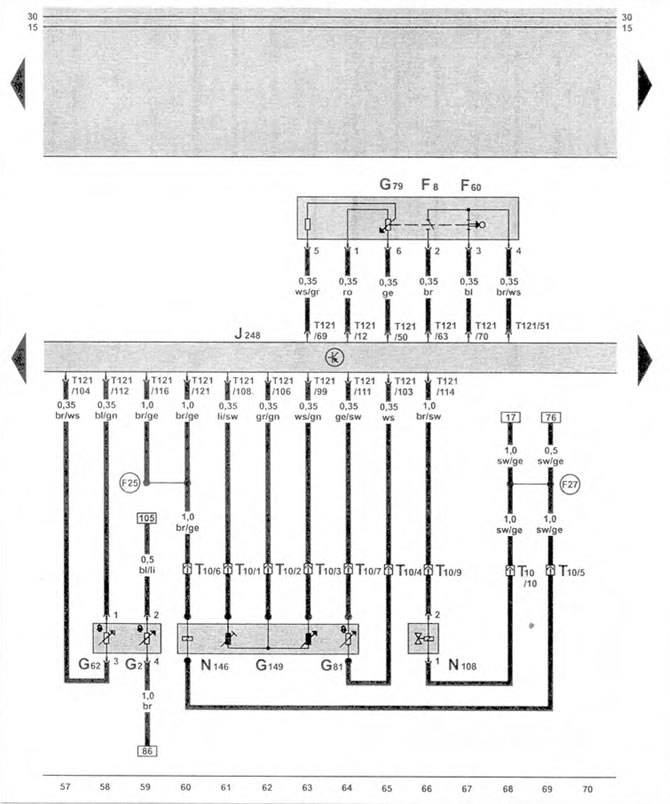

Diesel fuel injection control unit, accelerator pedal position sensor, accelerator pedal limit switch and idle speed switch, coolant temperature sensor, injection start valve
| F8 | accelerator pedal limit switch |
| F60 | idle speed switch |
| G2 | coolant temperature sensor |
| G62 | coolant temperature sensor |
| G79 | accelerator pedal position sensor, in the engine compartment on the front wall on the left |
| G81 | fuel temperature sensor |
| GM9 | throttle position sensor |
| J248 | diesel fuel injection control unit, near the battery |
| N108 | injection start valve |
| N146 | fuel supply regulator |
| T10 | wiring connector, 10-pin, left side of engine |
| T6a | wiring connector, 6-pin |
| T121 | wiring connector, 121-pin block, on the diesel fuel injection system control unit, near the battery |
| (F25) | connection 1 in the fuel injection system wiring kit |
| (F27) | compound (shielding) in the fuel injection system wiring kit |
