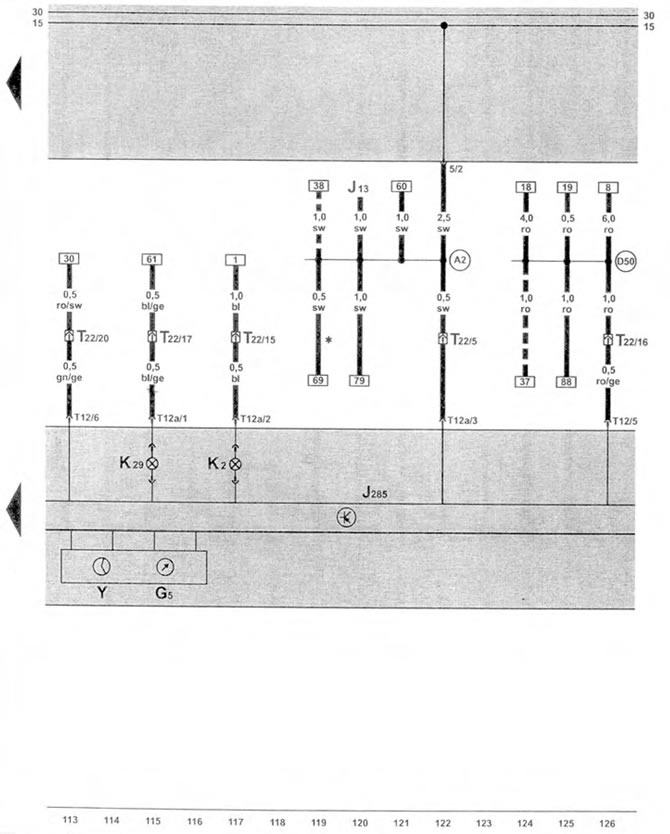

Engine management system AGX 2.5 TDI from February 1999 (IX).
Instrument cluster, tachometer, generator indicator light, preheating time indicator light
| G5 | tachometer |
| J13 | fresh air supply fan relay, under the driver's seat |
| J285 | control unit with a block of indicators in the instrument panel |
| K2 | generator indicator light |
| K29 | preheating duration indicator light |
| T12 | wiring connector, 12-pin |
| T12a | wiring connector, 12-pin |
| T22 | wiring connector. 22-pin, on the left under the instrument panel |
| Y | analog clock (optionally with a tachometer) |
| (A2) | connection to the positive pole (15) in the instrument panel wiring kit |
| (D50) | connection to positive pole 1 (30) in the engine compartment wiring kit |
| * | only on vehicles with cruise control |
| --- | only on vehicles with electronic engine immobilizer |
