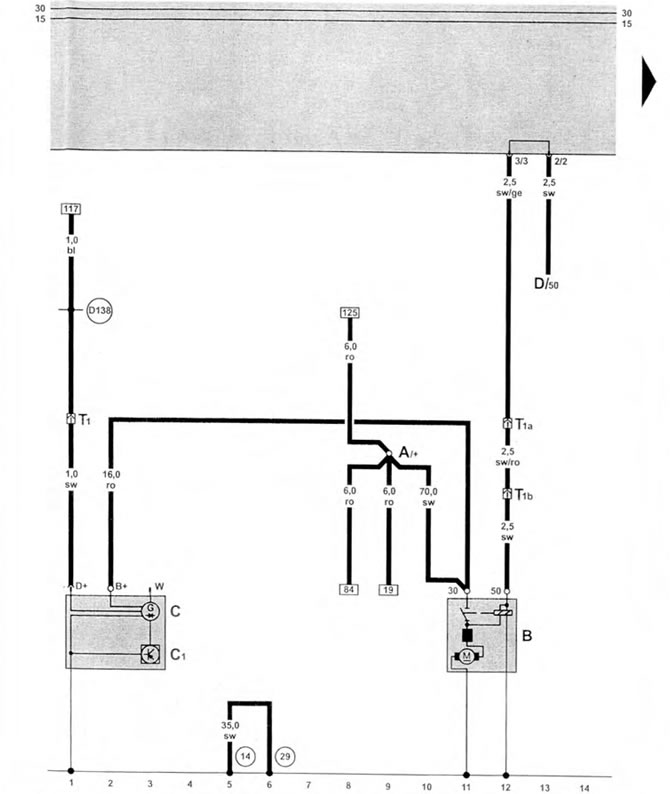

Engine management system AHD 2.5 TDI from November 1997 (I).
Generator, starter
| A | battery |
| IN | starter |
| WITH | generator |
| C1 | voltage regulator |
| D | ignition switch |
| T1 | wiring connector, single-pin |
| T1a | wiring connector, single-pin |
| T1b | wiring connector, single-pin, near the starter |
| (14) | ground connection on the gearbox |
| (29) | ground connection, near the transmission tunnel |
| (D138) | connection (D+) in the engine compartment wiring kit |
