Engine management system AHD 2.5 TDI from November 1997 (V).

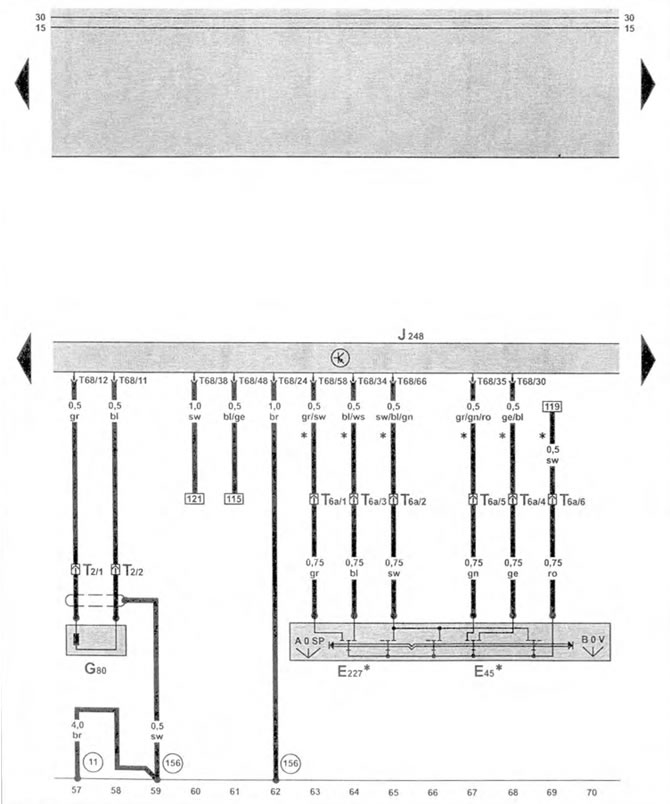

Diesel fuel injection control unit, cruise control system (GRA) switch, injector needle stroke sensor
| E45 | speed control system switch * |
| E227 | switch without fixed position for speed control system * |
| G80 | injector needle stroke sensor |
| J248 | diesel fuel injection control unit, near the battery |
| T2 | wiring connector, 2-pin, left side of engine |
| T6a | wiring connector, 6-pin |
| T68 | wiring connector, 68-pin |
| (11) | connection to "ground" |
| (156) | connection to the body in the wiring kit of the diesel fuel injection system |
| * | only on vehicles with cruise control since May 1998 |
