Engine management system for ARA and ANJ 2.5 TDI engines since September 2000 and BBE and BBF 2.5 TDI engines since May 2001 (VII).

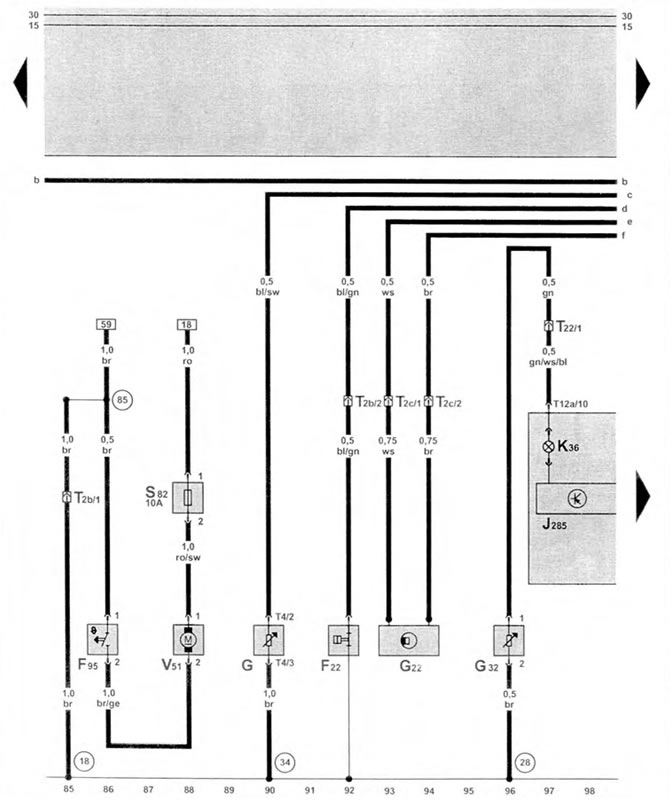

Instrument cluster, cooling system bleed, oil pressure sensor, speed sensor, low coolant indicator, fuel gauge sensor
| F22 | oil pressure sensor |
| F95 | cooling system purge thermal switch |
| G | fuel gauge sensor |
| G22 | speed sensor (on the gearbox) |
| G32 | low coolant level indicator sensor |
| J285 | control unit with a block of indicators on the instrument panel |
| K36 | warning light indicating insufficient amount of coolant |
| S82 | coolant system purge/pump fuse, under driver's seat |
| T2b | wiring connector, 2-pin, left side of engine |
| T2c | wiring connector, 2-pin, left under the instrument panel |
| T4 | wiring connector, 4-pin |
| T12a | wiring connector, 12-pin |
| T22 | wiring connector, 22-pin, left under the instrument panel |
| V51 | cooling system purge pump |
| (18) | connection to "ground" |
| (28) | connection to "ground" |
| (34) | ground connection, under the driver's seat |
| (85) | connection to body 1, engine compartment wiring kit |
