POLO
Removing
Turn off the ignition and turn off the lamp through the switch.
With the ignition off, disconnect the ground wire from the battery (-).
Attention: Follow the instructions given in chapter «Removing and installing the battery».
Open the tailgate and remove the lower and upper rear door lining.
Loosen the screws and remove the additional brake light from the tailgate towards the top.
Disconnect plug connector for additional brake signal.
Installation
Installation is carried out in reverse order.
Replacing an incandescent lamp
Remove additional brake signal.

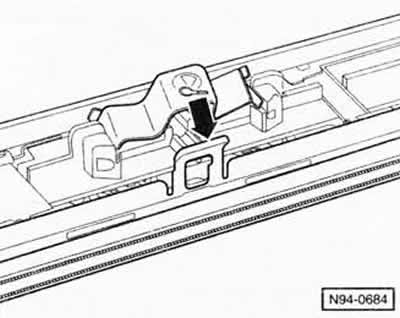

Press out 3 tabs -arrow- and detach bulb holder from lamp.
Pull the defective lamp out of the lamp holder with pointed pliers and replace it.
Only IBIZA
Open the rear door and pull out the rubber cap at the top center of the door.
Remove the plug connector for the additional brake signal from the hole and disconnect.
Remove the 4 spoiler mounting bolts and carefully detach the spoiler from the tailgate.
Unscrew the fastening screws from the rear side of the spoiler and remove the additional brake signal from the spoiler.
When installing, make sure that the wire guide pin fits into the door receiver.
