- 12V 60/55W - High beam/fog lights.
- 12V 55W - Low or high beam.
- 12V 21W - Front Direction Indicator.
- 12V 21W - Rear turn signal or reversing light.
- 12V 21/5W - Brake/Reversing Lights
- 12V 4W - Parking light.
- 12V 5W - License Plate Light.
- 12V 5W - Reversing lights.
Headlight

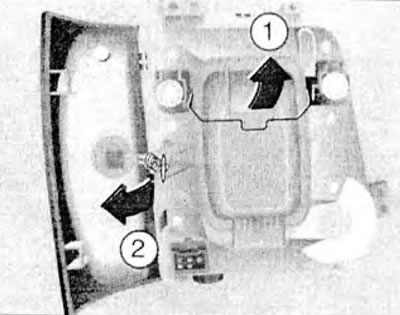

Replacing the headlight and turn signal bulbs is done from the engine compartment. Turn the locking lever up 1 and remove the headlight cover. Pull the wire loop that is attached to the turn signal housing back 2 against the spring tension until it comes off and the housing can be pulled forward.
Location of incandescent lamps: 1 - Direction indicator; 2 - Low beam headlights; 3 - Parking light; 4 - High beam headlight/fog light.
Taillights
(cargo-passenger vehicle and van)
Location of incandescent light bulbs: 1 - Brake light and reversing light; 2 - Direction indicator; 3 - Reversing light; 4 - Rear fog light (driver's side only).

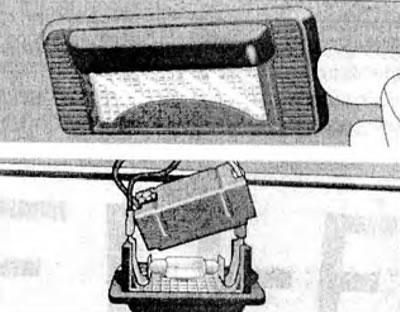

License plate light
(cargo-passenger vehicle and van)
Taillights
(flatbed platform)
Location of incandescent light bulbs: 1 - Parking light; 2 - Direction indicator; 3 - Brake light; 4 - Reversing light; 5 - Rear fog light (driver's side only); 6 - Reversing light; 7 - License plate light (driver's side only).
