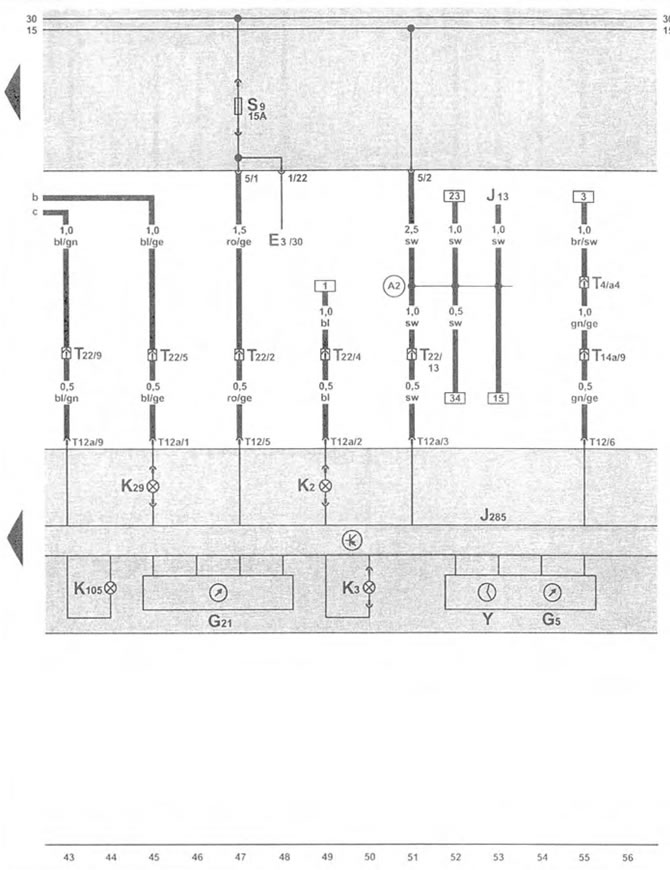

Engine management system AGK 2.8 TDI from July 1997 (IV).
Instrument cluster, generator indicator light, preheating time indicator light, tachometer, speedometer, fuel reserve indicator light
| E3 | hazard warning light switch |
| G5 | tachometer * |
| G21 | speedometer |
| J13 | fresh air supply fan relay, under the driver's seat |
| J285 | control unit with a block of indicators in the instrument panel |
| K2 | generator indicator light |
| K3 | oil pressure warning light |
| K29 | preheating duration indicator light |
| K105 | fuel reserve indicator light |
| T4a | wiring connector, 4-pin, near the battery |
| T12 | 12-pin wiring connector on the instrument panel |
| T12a | 12-pin wiring connector on the instrument panel |
| T14a | wiring connector, 14-pin, left under the instrument panel |
| T22 | wiring connector, 22-pin, on the right under the instrument panel |
| Y | analog clock * |
| (A2) | connection to the positive pole (15) in the instrument panel wiring kit |
| * | instrument cluster options: with tachometer/analog clock or with analog clock |
