Engine management system AGK 2.8 TDI from July 1997 (II).

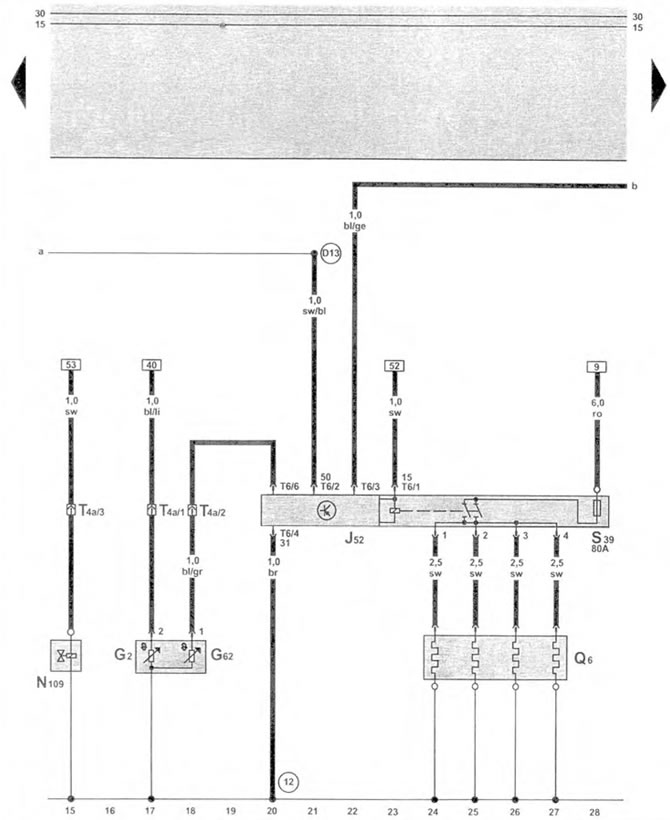

Glow plug relay, glow plugs, coolant temperature sensor, fuel shut-off valve
| G2 | coolant temperature sensor |
| G62 | coolant temperature sensor |
| J52 | glow plug relay |
| N109 | fuel shut-off valve |
| Q6 | glow plugs |
| S39 | blade fuse for glow plugs |
| T4a | wiring connector, 4-pin, near the battery |
| T6 | wiring connector, 6-pin |
| (12) | ground connection in the engine compartment, front left |
| D13 | connection (50) to the drive complex at the front left |
