Engine management system AGK 2.8 TDI from July 1997 (I).

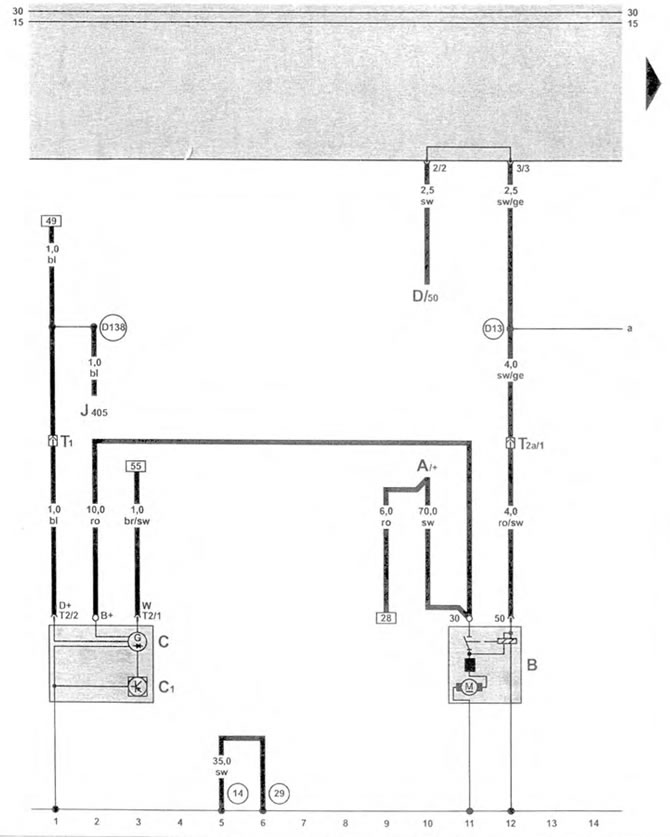

Generator, starter
| A | battery |
| IN | starter |
| WITH | generator |
| C1 | voltage regulator |
| D | ignition switch |
| J405 | unloader relay for terminal D+, under the driver's seat |
| 11 | wiring connector, single-pin |
| 12a | wiring connector, 2-pin |
| (14) | ground connection on the gearbox |
| (29) | ground connection, near the transmission tunnel |
| (D13) | connection (50), in the set of wires on the front left |
| (D138) | connection (D+), in the engine compartment wiring kit |
