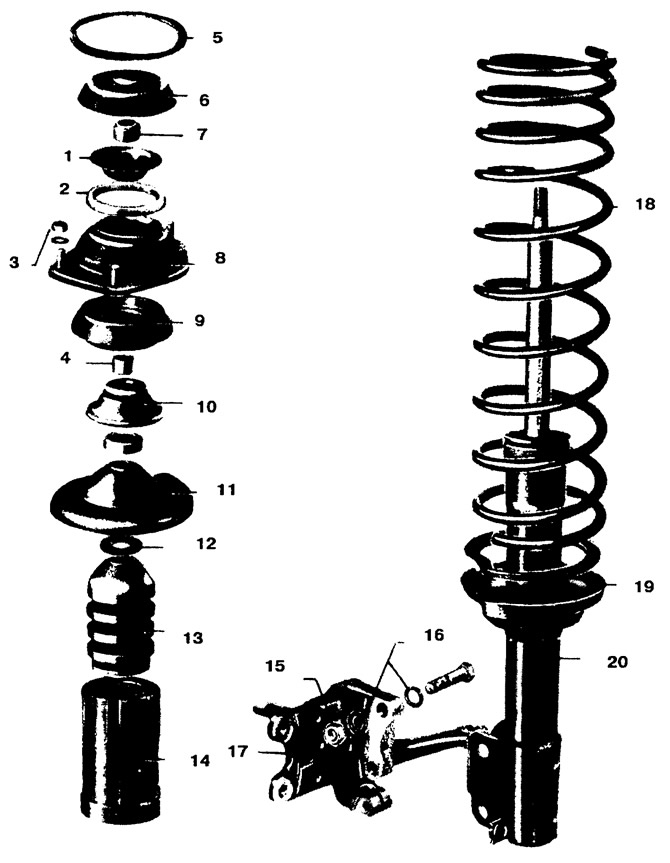

Shock absorber strut: 1 - stop; 2 - thrust ring (install on the installed shock absorber strut); 3 - nut; 4 - spacer sleeve; 5 - sealing ring; 6 - closing cap;7 - self-locking nut (replace with a new one; before unscrewing, be sure to compress the coil spring); 8 - shock absorber ring housing; 9 - shock absorber ring (sprinkle with talc); 10 - shock absorber support (if damaged, replace as a set); 11 - upper spring plate (install correctly); 12 - washer; 13 - rubber spring; 14 - protective tube; 15 - bolt (85 Nm (8.5 kgfm)); 16 - spring ring; 17 - steering knuckle; 18 - coil spring; 19 - shock absorber ring of the coil spring; 20 - shock absorber
